Panduit Pan-Net Panduit Pan-Net CJK688TGBU


Description

Industry Description

Keyed, Category 6, RJ45, 8-position, 8-wire universal module. Blue.

Modified Industry Description

Mini-Com Keyed Module, Cat 6, UTP,

AD Description

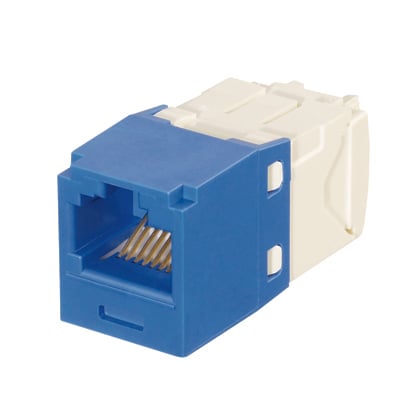

Panduit® TX6™ PLUS CJK688TGBU 8-Position 8-Wire Keyed RJ45 TG Style Unshielded Universal UTP Jack Module, Cat 6/Mini-Com® Module, Surface Mount, 1 Port, ABS/Polycarbonate, Blue

Specifications

Application
Unshielded
Color
Blue
Country of Origin
USA
Dimensions
0.71 in H x 0.62 in W x 1.5 in D
Length1
3.5000
Material
ABS/Polycarbonate
Mounting_Type
Surface
Special Features

  • Confidence that each jack module will deliver the critical electrical performance requirements
  • Controls cable bend radius for long term installed performance
  • Jack modules snap in and out of Mini-Com® faceplates, modular patch panels and surface mount boxes for easy moves, adds and changes
  • Marked with quality control number for future traceability
  • Mechanically and visually distinguish connections to prevent unintentional insertion into unlike keyed or non keyed ports, all network design flexibility and versatility and accommodate more discrete networks
  • Prevents standard RJ11 modular plugs from mating with keyed jack modules
  • Shortens the tuning length of the jack module enabling higher performance
  • Wire cap optimizes performance by eliminating conductor untwist and reduces installation time and expense; simplifies termination and maintains conductor twists for reliable and consistent terminations
Standard
Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS
Sub_Brand
Panduit
Type
8-Position 8-Wire Keyed RJ45 TG Style Unshielded Universal
