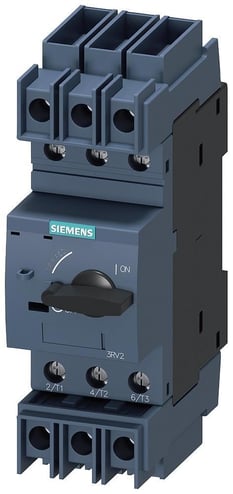

Siemens Siemens 3RV27111ED10


Description

Industry Description

Circuit-breaker sz s00, for plant protection, with approbation circuit-breaker ul 489. csa c22.2 no.5-02. a-release 4 a, n-release 52 a, screw connection, standard sw. capacity

Modified Industry Description

TMCB UL489 S00 4A SCREW

AD Description

SIRIUS 3RV27111ED10 Motor Protection Circuit Breaker, 690 VAC, 4 A, 4 kA Interrupt, 3 Poles, Magnetic Trip

Vendor Description

The SIRIUS 3RV2 motor starter protectors/circuit breakers are compact, current limiting motor starter protectors/circuit breakers which are optimized for load feeders. The motor starter protectors/circuit breakers are used for switching and protecting three-phase motors of up to 55/45 kW at 400 VAC and for other loads with rated currents of up to 100 A.

Specifications

Actuator
Selector Switch
Amperage Rating
4
Application
For system protection
Connection
screw-type terminals
Country of Origin
DE
Dimensions
144 mm H x 45 mm W x 97 mm D
Environmental_Conditions
80 -50 C
Frame
S00
Frequency_Rating
50 to 60
Interrupt_Rating
4
Length1
9.3000
Mounting_Type
DIN Rail
Number_Of_Poles
3
Operating_Temperature
60.0 -20.0 C
Phase
3
Power_Rating
3
Series
3RV2
Special Features

  • 100 kA at 240 VAC, 100 kA at 400 VAC, 100 kA at 500 VAC, 6 kA at 690 VAC
  • 3RV2 motor starter protectors/circuit breakers are suitable for operation in IT systems (IT networks)
  • 4 A thermal overload release, 52 A instantaneous overcurrent release
  • 750 W at 230 VAC, 1500 W at 400 VAC, 2200 W at 500 VAC, 3000 W at 690 VAC
  • Less heating of the control cabinet
  • Minimization of energy losses through optimization of the bimetal trip units
  • Reduction of inherent power loss
  • Smaller control cabinet air conditioners can be used
  • Without auxiliary switch
Sub_Brand
SIRIUS
Temperature_Rating
-20 to 60
Type
3RV2 circuit breaker
Voltage Rating
690
