Hubbell Hubbell SNAP5362WL
Hubbell SNAP5362WL
Kirby Risk #: 2921639
UPC: 78358525044, 783585250441, 00783585250441, 30783585250442
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Duplex, SNAPConnect 2, LED Indicator, 20A 125V, 2-Pole 3-Wire Grounding,5-20R, White
Modified Industry Description
SNAP2CONNECT DPLX 20A/125V LED WH
AD Description

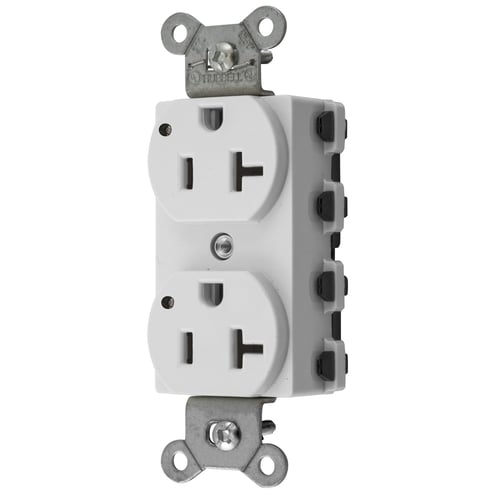

Wiring Device-Kellems SNAPConnect® SNAP5362WL Duplex Extra Heavy Duty Traditional Standard Straight Blade Receptacle With Power Indicating LED, 125 VAC, 20 A, 2 Poles, 3 Wires, White
Vendor Description
SNAPConnect® devices offer superior installation efficiency for new construction and renovations, while delivering safe, reliable connections. Instead of conventional wiring methods, SNAPConnect® modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed and the terminal is simply snapped into the SNAPConnect® device for a consistent connection every time. Once installed, SNAPConnect® modular design enables simple device change out by maintenance personnel.
Specifications
| Amperage Rating |
20
|
|---|---|
| Application |
SNAPConnect Commercial Grade
|
| Color |
White
|
| Connection |
Connectorized
|
| Conductor Size |
#14 AWG to #12 AWG
|
| Country of Origin |
US
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Length1 |
4.1600
|
| Material |
Thermoplastic
|
| Mounting |
Screw Mount
|
| NEMA_Rating |
5-20R
|
| Number_Of_Poles |
2
|
| Phase |
1
|
| Series |
Extra Heavy Duty
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL 498 and UL 943
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Traditional Duplex
|
| Voltage Rating |
125
|
| Wattage |
2,500
|
