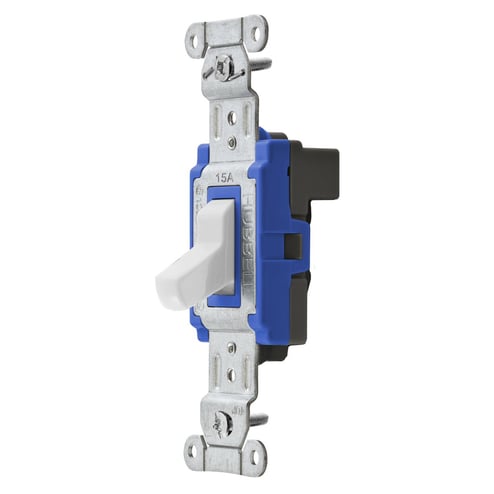

Hubbell Hubbell SNAP1201WNA
Hubbell SNAP1201WNA
Kirby Risk #: 2921229
UPC: 78358518645, 783585186450, 00783585186450, 30783585186451
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Switches and Lighting Controls,Industrial/Commercial Grade, SNAPConnect Series, Toggle Switches, SinglePole, 15A 120/277V AC, White, North American
Modified Industry Description
SWITCH,SNAPCONN,SP,15A120/277V,WH,N
AD Description
Wiring Device-Kellems SNAPConnect® SNAP1201WNA 2-Position Commercial/Industrial Grade General Purpose Heavy Duty Standard Toggle Switch, 120/277 VAC, 15 A, 4155 W Power Rating
Vendor Description
SNAPConnect® devices offer superior installation efficiency for new construction and renovations, while delivering safe, reliable connections. Instead of conventional wiring methods, SNAPConnect® modular connector is installed during rough-in in leu of pigtails. Once the walls are up, the protective covering is removed and the terminal is simply snapped into the SNAPConnect® device for a consistent connection every time. Once installed, SNAPConnect® modular design enables simple device change out by maintenance personnel.
Specifications
| Action |
Positive Snap
|
|---|---|
| Actuator |
Toggle
|
| Amperage Rating |
15
|
| Application |
SNAPConnect Heavy Duty
|
| Color |
White
|
| Connection |
Connectorized
|
| Country of Origin |
US
|
| Enclosure |
None
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Insulation |
None
|
| Length1 |
4.1600
|
| Material |
Thermoplastic
|
| Mounting |
Screw Mount
|
| Number_Of_Poles |
1
|
| Operating_Temperature |
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
|
| Series |
General Purpose
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
NEMA WD1, UL20
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
General Purpose Switches
|
| Voltage Rating |
120/277
|
| Wattage |
4155
|
