Hubbell Hubbell HBL2830SW


Description

Industry Description

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, WatertightSafety Shroud, Receptacle, 30A 3-Phase Wye 347/600V AC, 4-Pole 5-WireGrounding, L23-30R, Screw Terminal, Gray

Modified Industry Description

LKG WT S/SHRD RCPT, 30A, L23-30R

AD Description

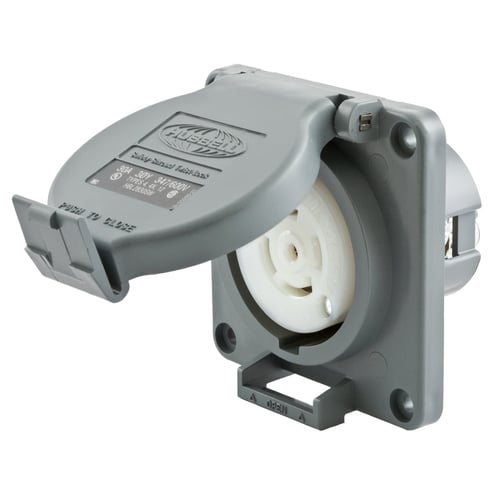

Hubbell® Twist-Lock® Safety-Shroud® HBL2830SW Shrouded Watertight Locking Receptacle, 347/600 VAC, 30 A, 4 Poles, 5 Wires, Gray

Specifications

Amperage Rating
30
Application
Heavy Duty Industrial Shrouded Watertight
Color
Gray
Connection
Screw Terminal
Conductor Size
#12 AWG to #8 AWG
Country of Origin
PR
Dimensions
3.75 in H x 2.69 in D
Enclosure
IP20
Environmental_Conditions
Watertight
Length1
3.9000
Material
Thermoplastic
Mounting
Screw Mount
NEMA_Rating
NEMA L23-30R
Number_Of_Poles
4
Phase
3
Size
Standard Sized Product
Special Features

  • -40 to 75 deg C maximum continuous (without impact) operating temperature
  • 16 to 8 AWG terminal accommodation
  • 2000 VAC minimum dielectric voltage withstand
  • 3-phase, star connection 347/600 VAC
  • 5-wire grounding
  • Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
  • Catalog number and color coded voltage rating are easily visible even when in use
  • Catalog number and color coded voltage rating are visible even when in use
  • Certified for current interrupting at full rated current
  • Clear polycarbonate terminal retainer materia
  • Gray RPT housing / cover material
  • High impact, thermoplastic housing for heavy duty industrial environments
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75
  • Natural white nylon body contact carrier material
  • Shrouded watertight construction
  • Stainless steel lift cover spring and pin material
  • Steel, zinc plated drive screw material
  • Terminals identified in accordance with UL 498 (x, y, z, white, green) terminal identification
  • UL type 4X environmental seal while in use and when closed
  • V2 or better per UL94/CSA 22.2 No 0.17 flammability
Standard
NEMA WD1 and WD5, UL 498
Sub_Brand
Twist-Lock Devices
Temperature_Rating
-40 to 75
Type
Shrouded Watertight
Voltage Rating
347/600
Wattage
18000
