Hubbell Hubbell HBL15MRSR
Hubbell HBL15MRSR
Kirby Risk #: 2918017
UPC: 78358545824, 783585458243, 00783585458243, 30783585458244
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

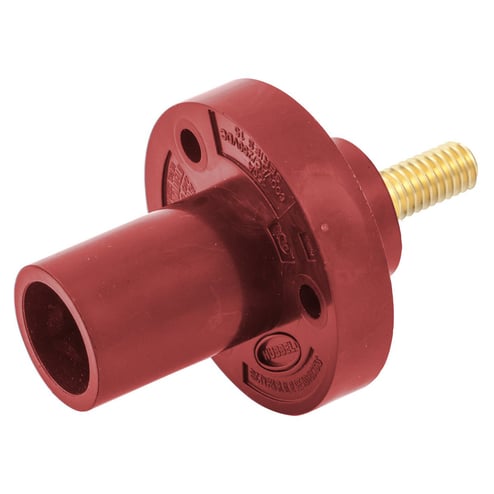

Hubbell Wiring Device Kellems, Single Pole Products, Male Inlet,Threaded Stud Termination, 150 Amp Series, Red
Modified Industry Description
SINGLE POLE SER.15 INLET, STUD,
AD Description
Wiring Device-Kellems HBL15MRSR 15 Series Inlet Male Standard Single Pole Receptacle, 600 VAC/250 VDC, 150 A, 8 to 2 AWG Wire, Threaded Stud, NEMA 3R/4X/12
Vendor Description
Hubbell wiring Device-Kellems offers a full line of innovative, high quality, series 15 and series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.
Specifications
| Amperage Rating |
150
|
|---|---|
| Application |
Extra Heavy Duty Industrial
|
| Brand Name |
Hubbell
|
| Color |
Red
|
| Connection |
Threaded Stud
|
| Conductor Size |
#4 AWG Type SC/PPC Wire
|
| Country of Origin |
US
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Material |
Brass/Thermoplastic
|
| Mounting |
Screw Mount
|
| NEMA_Rating |
Non-NEMA
|
| Number_Of_Poles |
1
|
| Number_Of_Wires |
1
|
| Phase |
1
|
| Size |
Standard Sized Product
|
| Special Features |
Standard Product
|
| Standard |
UL1691
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
70 Degrees C to -40 Degrees C
|
| Type |
Male Inlet
|
| Voltage Rating |
600
|
| Wattage |
90k
|
