NSI NSi EJWT
NSI EJWT
Kirby Risk #: 2827331
UPC: 78626182513, 786261825131, 00786261825131
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description
Tork Percentage Cycle Timer APPLICATIONS: Poultry and Livestock, Agriculture, Greenhouses, Oil Well Pumping, Ventilation, Process Control FEATURES: TIMER DETAILS: 960 time combinations with two dials Cycle Time Dial sets 32 repeating cycles from 15 seconds to 24 hours Percentage ON Dial has 32 steps from 0 to 100 Repeats cycle as long as power is applied TIMING ACCURACY: 1 of timing range INPUT VOLTAGE: 120/240VAC, 60Hz OUTPUT CONTACT: SPDT TERMINAL RANGE: #12 - #18AWG OPERATING TEMPERATURE: 32 degrees F to +122 degrees F (0 degrees C to + 50 degrees C) POWER CONSUMPTION: 16VA Maximum ENCLOSURE: Metal Indoor NEMA 4X MANUFACTURER: Tork, UPC: 786261825131 CONTACT RATINGS: GENERAL PURPOSE: 120-240VAC. NO: 20A NC: 10A RESISTIVE: 120-240VAC. NO: 20A NC: 10A PILOT DUTY: 120/240VAC. NO: 470VA NC: 275VA MOTOR: 120VAC NO: 1HP NC: 1/4HP 208-240VAC NO: 2HP NC: 1/2HP
Modified Industry Description
120/240VAC PERCENTAGE TIMER
AD Description

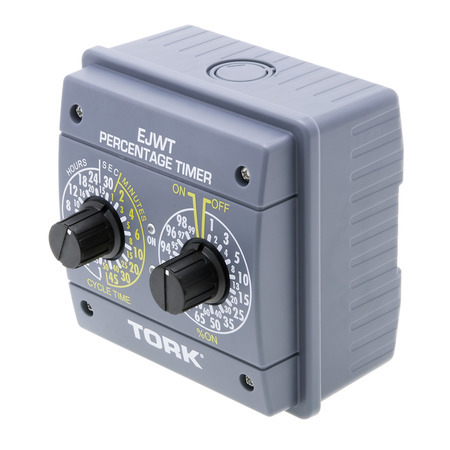

NSI TORK® EJWT Percentage Timer, 120 to 240 VAC, SPDT Contact, 1 Pole
Specifications
| Action |
SPDT
|
|---|---|
| Application |
PoultryAnd Livestock-AgricultureOr Greenhouses-Oil Well Pumping-Ventilation-Process Control
|
| Base |
Screw
|
| Country of Origin |
USA
|
| Enclosure |
NEMA 4X Indoor
|
| Environmental_Conditions |
32 to + 122 F
|
| Frequency_Rating |
60
|
| Length1 |
4.1250
|
| Mounting |
Screw Mount
|
| Number_Of_Poles |
1
|
| Operating_Temperature |
32 to + 122 F
|
| Phase |
1
|
| Size |
L=4.812 - H=4.812 - W=3.312
|
| Special Features |
|
| Standard |
UL-CSA
|
| Sub_Brand |
NSi
|
| Type |
Percentage Timer
|
