Lithonia Lighting Lithonia Lighting ELA NX N0806

Lithonia Lighting ELA NX N0806

Kirby Risk #: 2666312

UPC: 78423100654, 784231006542, 00784231006542, 70784231006541

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Lithonia Lighting

Description

Modified Industry Description

8W GRAY SEALED INDUSTRIAL REMOTE HEAD W/ MOUNTING PLATE

AD Description

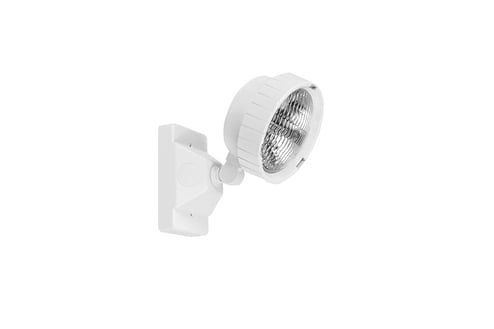

Lithonia Lighting® ELA NX N0806 Single Face Remote Lamp Head, Incandescent Lamp, 8 W Lamp, 6 VAC, 1 Heads

Application	Emergency and Safety
Color	White
Construction	Thermoplastic Construction in Matte White
Country of Origin	MX
Dimensions	4-3/4 in L x 7-3/4 in W x 4-9/16 in D
Lamp_Type	Incandescent
Material	Thermoplastic
Mounting_Type	Universal
Series	ELA
Special Features	Constructed of UV-stabilized thermoplastic with a UL94V-0 flame rating, fully gasketed mounting plate Fully adjustable lamp heads meet all aiming requirements Glass sealed beam PAR36 lamps Ideal for damp and wet location areas requiring remote lighting Removable bezel and sealed, phosphor bronze slip-on lamp terminals To be powered by 6 V battery equipment as part of an emergency lighting system, providing light for the path of egress Universal mounting plate for use with single or twin-head applications
Standard	UL
Sub_Brand	Lithonia Lighting
Type	Single Face
Voltage Rating	6
