Crouse-Hinds Crouse-Hinds CRC1033CD
Crouse-Hinds CRC1033CD
Kirby Risk #: 2616359
UPC: 66227627671, 662276276710, 00662276276710
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Crouse-Hinds
Description
Industry Description
CONNECT POWERMATE 100 AMP 3 WIRE 3 POLE .875 TO 1.906
Modified Industry Description
CONNECT PWRMT 100A 3W3P .875 TO
AD Description

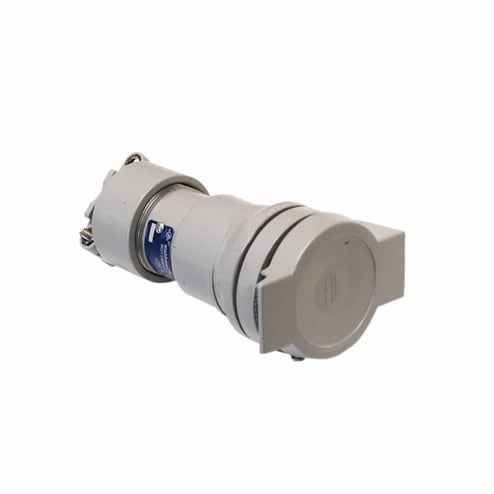

Crouse-Hinds PowerMate™ CRC1033CD Lockout Watertight Pin and Sleeve Cord Connector, 600 VAC/250 VDC, 100 A, 3 Poles, 3 Wires
Vendor Description
The PowerMate™ offering supports modularity of drilling rig systems by providing safe and reliable power connections for rigging up and rigging down equipment quickly and efficiently. PowerMate™ Plugs, Receptacles and Connectors are used on SCR/VFD houses to provide power to rig equipment such as shakers, agitators, lighting circuits, mud pumps, motors and more. This offering is the ideal rig power connection solution providing longer product life, reduced maintenance, enhanced safety and easy installation. The PowerMate™ product offering is also interchangeable with all UL1686 Listed plugs and receptacles, including EATON's Crouse-Hinds series Arktite®, Appleton® Powertite® and Killark VersaMate®.
Specifications
| Amperage Rating |
100
|
|---|---|
| Application |
Motor Generator Sets, Compressors, Heating/Cooling, Welders, Lighting
|
| Conductor Size |
4 To 2 AWG (Extra Flex)
|
| Country of Origin |
MX
|
| Dimensions |
3-3/16 in Dia x 11-1/2 in L
|
| Frequency_Rating |
50 to 400
|
| Length1 |
5.5120
|
| Material |
Copper Free Aluminum
|
| NEMA_Rating |
NEMA 4X
|
| Number_Of_Poles |
3
|
| Series |
CRC
|
| Size |
3-3/16 In Diameter X 11-1/2 In Length
|
| Special Features |
|
| Standard |
UL 1682, UL 1686, CSA C22.2
|
| Sub_Brand |
Eaton Crouse-Hinds
|
| Type |
Lockout Watertight
|
| Voltage Rating |
600 VAC/250 VDC
|
