B-Line B-Line SB86486D084FB


Description

Industry Description

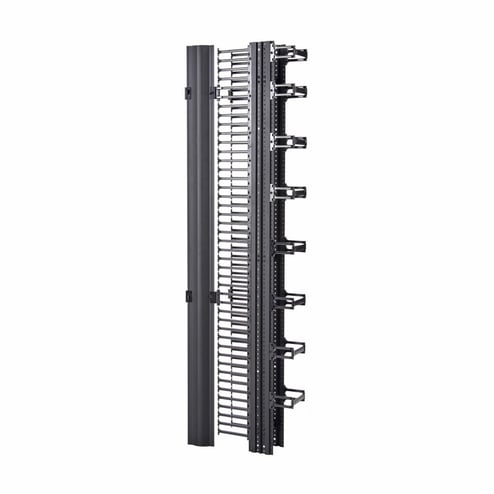

RCM+ VERTICAL CABLE MANAGER, DUAL DENSITY, 6-IN.W X 84-IN.H, FLAT BLACK

Modified Industry Description

RCM+ VERTICAL CABLE MANAGER, DUAL

AD Description

B-Line SB86486D084FB 2-Sided Dual Density Vertical Cable Manager With Cover, 6 in W x 17-7/8 in D, Steel

Vendor Description

EATON's B-Line series rack cable management plus (RCM+) product line is enhanced to provide greater network rack density, featuring up to 30% more total rack cable capacity versus leading competitors in its class. The patented system's innovative features include greater capacity, low profile power mounting, and three color options, including the new EATON White.

Specifications

Application
Underground, Combination CT/Meter Enclosure
Brand Name
B-Line
Color
Flat Black
Country of Origin
US
Finish
Powder Coated
Material
Steel
Model
SB86
Mounting
Surface
Special Features

  • 1-3/4 in distance between the top of the rack and the top of the RCM+ cable manager
  • 1/4 in accessory mounting holes RUN the full height ON both sides of the cable manager to accommodate the attachment of cable management accessories
  • 2-5/8 in distance between the floor and the lowest part of the RCM+ cable manager
  • 79-5/8 in H of RCM+ vertical section without doors
  • Aluminum with UL 94V-0 black plastic components
  • Available in full line of heights, widths and colors
  • Double sided SB864 series cable managers utilize the SB860 and SB862 series cable managers in back-to-back combination for use in applications with varying cable management requirements
  • Front and rear vertical sections can be spaced apart when mounting ON racks deeper than 3 in, allowing cables to be routed out through side openings created between the vertical sections
  • High density extended fingers provide maximum cable support for each rack mounting space
  • High density vertical cable section can be used with RCM+ extended horizontal cable manager
  • Installation is easy and can be performed in minutes using standard hand tools
  • Low density vertical cabling section can be used with RCM+ horizontal cable managers
  • Open back design allows unrestricted routing of cables between front and rear sections
  • Optional back removable covers are designed with pass through openings for cable routing, keyhole slots for cable spools, slots for cable straps and keyhole slots for direct ePDU mounting
  • Snap-on gates ON both sides allows for quick opening from either side or complete removal
  • Stylistic, full height door compatible with quarter turn latches for easy operation
Standard
UL 414
Sub_Brand
EATON B-LINE SERIES
Type
2-Sided Dual Density
Width_2
6.0000
