B-Line B-Line SB86086S078FB


Description

Industry Description

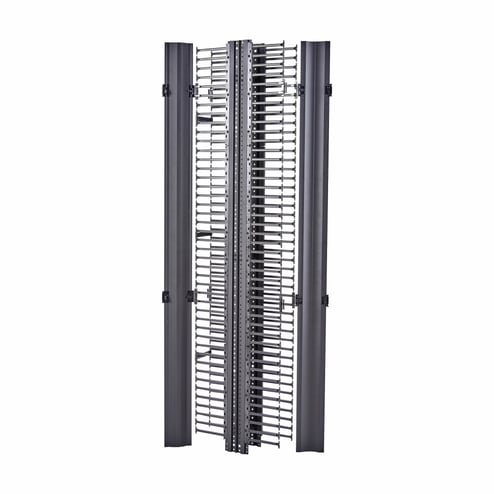

RCM+ VERTICAL CABLE MANAGER, SINGLE SIDED HIGH DENSITY, 6-IN.W X 78-IN.H, FLAT B

AD Description

B-Line SB86086S078FB 1-Sided High Density Vertical Cable Manager With Cover, 6 in W x 10-13/16 in D, Aluminum

Vendor Description

EATON's B-Line series rack cable management plus (RCM+) product line is enhanced to provide greater network rack density, featuring up to 30% more total rack cable capacity versus leading competitors in its class. The patented system's innovative features include greater capacity, low profile power mounting, and three color options, including the new EATON White.

Specifications

Application
RELAY RACK ACCESSORIES,RCM+
Color
Black
Country of Origin
US
Dimensions
10.8125 X 6.0000 X 72.6250
Finish
Flat
Length1
10.8125
Material
79903833860
Special Features

  • 1/4 in accessory mounting holes RUN the full height ON both sides of the cable manager to accommodate the attachment of cable management accessories
  • 2-3/4 in distance between the top of the rack and the top of the RCM+ cable manager
  • 2-5/8 in distance between the floor and the lowest part of the RCM+ cable manager
  • 72-5/8 in H of RCM+ vertical section without doors
  • Aluminum with UL 94V-0 black plastic components
  • Compatible with RCM+ extended horizontal cable managers
  • Gates can be placed at any location
  • Installation is easy and can be performed in minutes using standard hand tools
  • Open back design allows unrestricted front and rear routing of cables
  • Optional back removable covers are designed with pass through openings for cable routing, keyhole slots for cable spools, slots for cable straps and keyhole slots for direct ePDU mounting
  • Plastic finger style
  • Single sided SB860 series RCM+ vertical cable managers with extended fingers are designed for routing high density cabling by providing maximum cable support for each rack mounting space
  • Stylistic, full length doors, with quarter turn locking hinges, allow for quick opening from either side or complete removal
  • Three Snap-on gates retain cables when doors are opened or removed
Standard
UL
Sub_Brand
Comm/Data
Type
Open Frame Racks
