Bussmann Bussmann TP158HC
Bussmann TP158HC
Kirby Risk #: 2593876
UPC: 05171266371, 051712663717, 00051712663717
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Bussmann
Description
Industry Description
250A 80VDC TPL Telpower English Stud Fused Disconnect Switch
Modified Industry Description
TELPOWER FUSED DISC.
AD Description

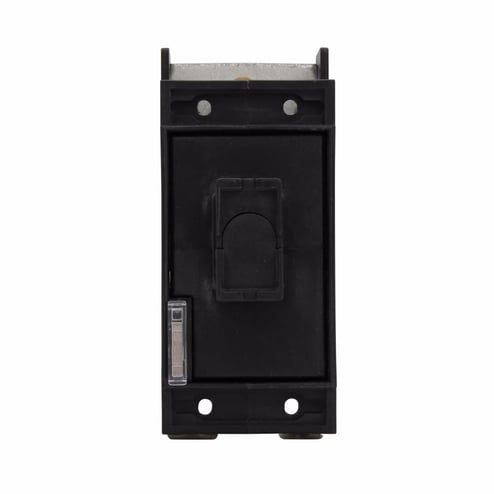

Bussmann Telpower® TP158HC English Stud Fusible Disconnect Switch, 80 VDC, 70 to 250 A
Specifications
| Amperage Rating |
70-250A
|
|---|---|
| Application |
Other IT and Datacom - IT and Datacomm - Other
|
| Connection |
1/4 inch - 20 TPI bolt line terminal
|
| Country of Origin |
MX
|
| Dimensions |
4.5800 X 1.9700 X 4.4000
|
| Length1 |
4.5800
|
| Material |
Thermoplastic
|
| Mounting |
Panel
|
| Operating_Temperature |
150
|
| Size |
1.99 In Width X 4.52 In Height
|
| Special Features |
|
| Standard |
RoHS Compliant,Not Applicable
|
| Sub_Brand |
Bussmann Series
|
| Type |
Fuse disconnect switch
|
| Voltage Rating |
80 Vdc
|
