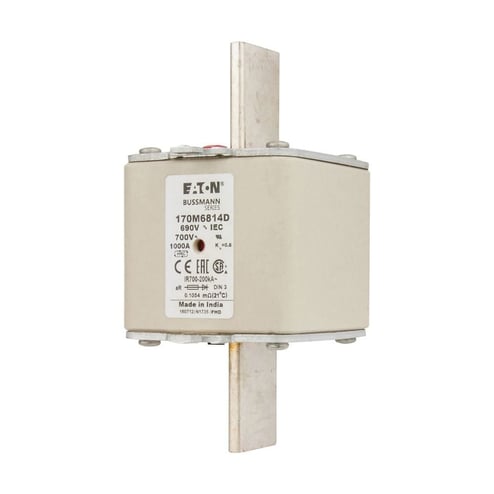

Bussmann Bussmann 170M6814D

Name: Bussmann 170M6814D
Brand: Bussmann
SKU: 2583278
Price: 1581.85 USD
Availability: InStock

Bussmann 170M6814D

Kirby Risk #: 2583278

UPC: 05171233527, 051712335270, 00051712335270

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Bussmann

Description

Industry Description

1000AMP 700V HIGH SPEED FUSE

Modified Industry Description

1000A 700V HIGH SPEED FUSE

AD Description

Bussmann Semiconductor Fuse, 1000 A, 700 VAC, 200 kA Interrupt, Square Body

Amperage Rating	1000
Application	DC Common Bus, DC Drives, Power Converters/Rectifiers, Reduced Voltage Starters
Class	Class aR
Connection	DIN 43-620 Blade End X DIN 43-620 Blade End
Country of Origin	MUL
Dimensions	5.9055 X 2.9921 X 3.4646
Interrupt_Rating	200
Length1	5.9055
Size	150 mm Length X 76 mm Width X 88 mm Height
Special Features	Clearing (I2T): Clearing at 660V: 985000 Connection Type: Din 43 to 620 Blade End x Din 43 to 620 Blade End Height: 2.087 in Length: 5.433 in Package Type: Standard Pre Arc (I2T): 140000 Watt Losses: 56 W Weight: 1.6456 lbs Width: 0.315 in
Standard	UL, CE, IEC 60269
Sub_Brand	Cooper Bussmann
Type	Square Body
Voltage Rating	700
