3M 3M 7665-S-8


Description

Industry Description

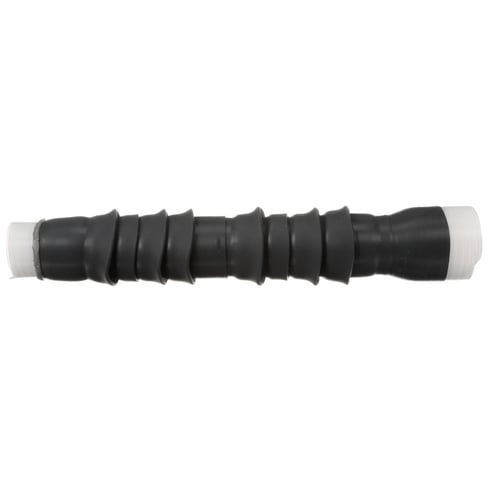

3M™ Cold Shrink QT III 7640 S, 7650 S & 7660 S Series Termination Kit includes a 1 piece, skirted termination. It ensures a pliable, tight seal for jacketed concentric neutral and concentric neutral power cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages of 5 to 35kV.

Modified Industry Description

COLD SHRINK 8 SKIRT TERMINATION

AD Description

3M™ 054007-42461 7660-S Cold Shrink QT-III Termination Kit, 1 Pieces, For Use With Single Core Tape Shield, Wire Shield and UniShield® Cable, Silicon Rubber, Black

Vendor Description

3M™ Cold Shrink QT-III 7640-S, 7650-S and 7660-S Series Termination Kit includes a 1-piece, skirted termination. It ensures a pliable, tight seal for jacketed concentric neutral and concentric neutral power cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages of 5 to 35kV

Specifications

Application
Outdoor
Color
Black
Conductor Size
1000 kcmil; 1250 kcmil; 1500 kcmil; 250 kcmil; 3/0 AWG; 300 kcmil; 350 kcmil; 4/0 AWG; 400 kcmil; 500 kcmil; 600 kcmil; 700 kcmil; 750 kcmil; 800 kcmil
Country of Origin
US
Length1
23.9000
Material
Silicon Rubber
Series
7660-S
Special Features

  • 1 terminal
  • Conductor size by voltage (5 kV) 700 to 1500 kcmil, (8 kV) 600 to 1250 kcmil, (15 kV) 500 to 1000 kcmil, (25/28 kV) 250 to 800 kcmil, (35 kV) 3/0 AWG to 600 kcmil
  • High dielectric constant material regulates the distribution of electric field stress
  • Jacketed concentric neutral (JCN), concentric neutral (CN) shielding type
  • Provides a void free seal to jacketed concentric neutral and concentric neutral power cables
  • QL2-A-4/0-600, QL2-A-350-750 compatible lug
  • Silicone rubber insulation offers durability and reduces leakage currents in damp conditions

Standard
IEEE
Sub_Brand
3M
Type
Cold Shrink QT-III
Voltage Rating
892.857/5k/8k/15k/35k
