Intermatic Intermatic EK4536
Intermatic EK4536
Kirby Risk #: 2541111
UPC: 07827513017, 078275130173, 00078275130173
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Intermatic
Description
Industry Description
Select Grade ON/OFF switching with high quality relays. Zero-crossing electronic circuitry for extended life (LED and EK models). Employs electronic components exclusively selected to meet extended life targets.
Modified Industry Description
1000W 120/277V - SELECT GRADE PHOTO CONTROL
AD Description

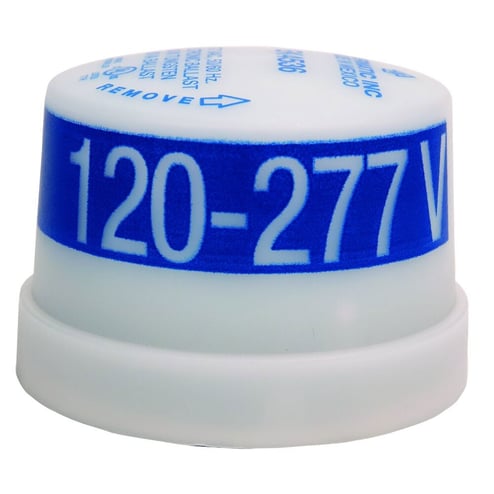

Intermatic® EK4536 Side Turn-Lock Photocontrol, 105 to 305 VAC, 1800 VA Tungsten, 1000 W Ballast, Twist-Lock Mount, Polypropylene
Specifications
| Application |
Dusk to Dawn Lighting Control
|
|---|---|
| Ballast_Power_Rating |
1800
|
| Brand Name |
Intermatic
|
| Connection |
Turn Lock
|
| Country of Origin |
MX
|
| Enclosure |
NEMA 410
|
| Frequency_Rating |
50/60
|
| Mounting |
NEMA Twistlock
|
| Operating_Cycles |
10k
|
| Operating_Temperature |
-40 to +158 DEG F -40 to +70 DEG C
|
| Output |
1000 Watts
|
| Power_Consumption |
<0.5 WTT @ 277 VAC
|
| Sensitivity |
1.5 FC ON, 2.25 FC OFF
|
| Sensor |
Solid State Photo Sensor (Silicon IR Filtered)
|
| Size |
2.97 DIAMETER X 2.721 HEIGHT IN, 75.4 DIAMETER X 69.11 HEIGHT MM
|
| Source |
Electronic Control
|
| Special Features |
|
| Standard |
ANSI C136.24 Compliant, CSA Certified to Canadian, Title CA 20 Listed, RoHS Compliant
|
| Sub_Brand |
Intermatic
|
| Supply_Voltage |
120 or 208-277
|
| Timing_Range |
2 - 5
|
| Tungsten_Watts |
1000
|
| Type |
TwistLock Photocell
|
