Hoffman Hoffman TX528316100
Hoffman TX528316100
Kirby Risk #: 2533432
UPC: 78351018862, 783510188627, 00783510188627
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hoffman
Description
Industry Description
ClimaGuard Air-to-Air Outdoor, 52.00x19.70x10.10, Steel
Modified Industry Description
TX52 115AC HEX
AD Description

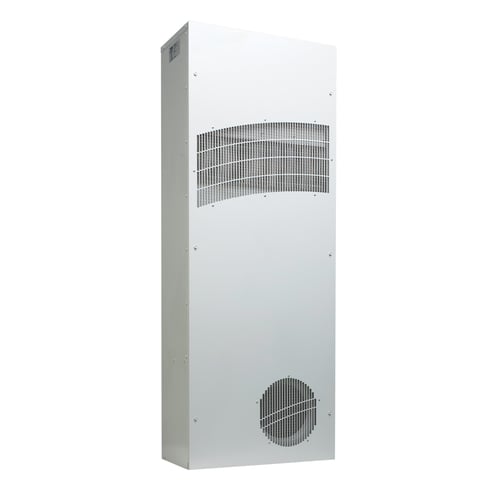

Hoffman ClimaGuard™ TX528316100 MCLHE TX52 Heat Exchanger, 115 VAC, 4.3/6.7 A, 782 W Power Rating, NEMA 3R/4/12 Enclosure, 495/533 cfm at 50 Hz Internal Loop, 540/605 cfm at 60 Hz External Loop Air Flow
Vendor Description
nVent Hoffmans ClimaGuard Outdoor Heat Exchangers offer reliable closed-loop cooling while sealing out harsh environments including temperature extremes, dirt, dust, corrosive elements and wind-driven rain. This robust heat exchanger features a double-crimped and dip-sealed core, allowing efficient thermal transfer while ensuring maximum protection against leaks. With ClimaGuard Outdoor Heat Exchangers providing a tight seal against air and water infiltration, units can be simply surface or recess-mounted to an enclosure with no loss of enclosure integrity.
Specifications
| Amperage Rating |
4.3/6.7
|
|---|---|
| Application |
Controls and Drives; Power Distribution
|
| Color |
Light Gray
|
| Country of Origin |
US
|
| Dimensions |
38 in H x 19.7 in W x 10.1 in D
|
| Finish |
Powder Coated
|
| Frequency_Rating |
50/60
|
| Length1 |
21.5000
|
| Material |
Mild Steel/Sheet Metal
|
| Mounting |
Surface Mounted
|
| NEMA_Rating |
4 Watertight
|
| Power_Rating |
782
|
| Series |
MCLHE TX52
|
| Special Features |
|
| Standard |
Maintains UL/cUL Type 4, 12, 3R rating when properly installed on the appropriate UL/cUL Type 4, 12, 3R enclosure., UL/cUL Listed, UL File No. SA7402
|
| Sub_Brand |
Hoffman
|
| Type |
Heat Exchangers
|
| Voltage Rating |
115
|
