Hoffman Hoffman S304020SS


Description

Industry Description

Syspend Sanitary Enclosure, Type 4X, 11.81x15.75x7.87, SS Type 304

Modified Industry Description

SYSPEND HMI ENCL, TYPE 4X

AD Description

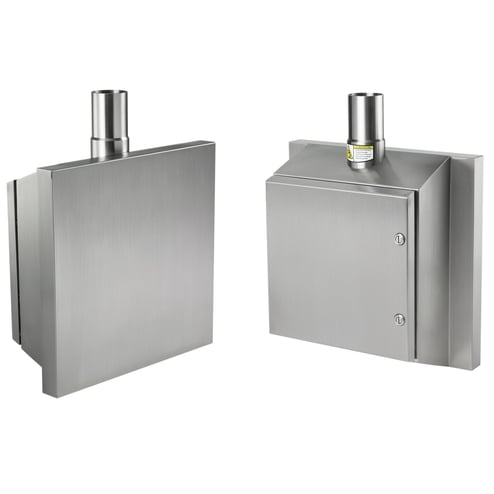

Hoffman SYSPEND™ S304020SS VM9 HMI Sanitary Enclosure, 11.81 in L x 15-3/4 in W x 7.87 in D, NEMA 4/4X/12/IP66/IP69K NEMA Rating, 304 Stainless Steel

Vendor Description

Specifically designed to house process control equipment in sanitary washdown environments, particularly food and beverage manufacturing. The enclosure features many clean design elements and meets Type 4X and IP69K requirements for high-pressure, high-temperature washdown applications.

Specifications

Application
Controls and Drives; Corrosive Environments; Hygienic Environments
Color
Unpainted
Country of Origin
US
Finish
#3 Brushed
Length1
11.81
Material
304 Stainless Steel
Mounting_Type
Pedestal
NEMA_Rating
NEMA 4/4X/12/IP66/IP69K
Series
VM9
Size
11.81X15.75X7.87 in
Special Features

  • 20 deg sloped top facilitates runoff of water and cleaning solutions and prohibits the placement of objects on the top of the enclosure
  • Constructed from 1.2 mm THK
  • Enclosure can be flipped for either pendant or pedestal mounting
  • Enclosure provides modern, flat screen monitor style aesthetics
  • Flat area provided for installing optional H2OMIT Vent Drain to provide means of removing condensed moisture from the enclosure
  • Fully concealed gasket area provides complete protection in washdown environments
  • Hinges are shielded by door
  • Integrated side handles allow for easy repositioning of enclosure
  • Internal support plate included with each enclosure provides extra rigidity for suspension mounting
  • Slanted flange trough collar prohibits pooling of fluids along the top edge of the enclosure opening
  • Suspension arm adapter can be installed backwards to provide 40 deg tilt for pedestal applications
  • Suspension arm adapter provided with enclosure, provides means of attachment to the SYSPEND™ sanitary suspension system and SYSPEND™ VHDS-motion arm
Standard
UL 508A Listed, Type 4, 4X, 12, File No. E61997, cUL Listed per CSA C22.2 No 94, Type 4, 4X, 12, File No. E61997, NEMA/EEMAC Type 4, 4X, 12, CSA File No. 42186, Type 4, 4X, 12, IEC 60529, IP66, IP69K
Sub_Brand
Syspend
Type
HMI Enclosure Systems
