Hoffman Hoffman PTRS362412G3


Description

Industry Description

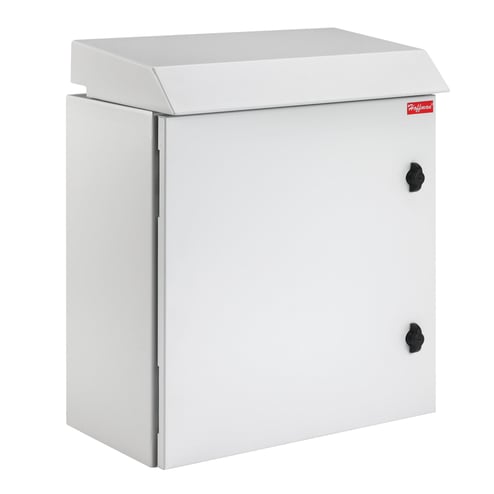

ProTek Single-Door Fan Packages, 36.30x23.62x11.81, Lt Gray, Steel

Modified Industry Description

PTK SGL SD 36X24X12 FAN 3R

AD Description

Hoffman PROTEK® PTRS362412G3 DWS12 Double Hinged Slide Door Fan Package Cabinet, 36.3 in L x 23.62 in W x 11.81 in D, NEMA 1/3R/IP30/32 NEMA Rating, Steel

Vendor Description

ProTek Single-Door Fan Package cabinets are an excellent, off-the-shelf choice for mounting 19-in. rack, panel-mounted devices or other electronic equipment. An integral top solar/drip shield and thermostatically-controlled fans provide airflow to cool internal equipment. Cabinets are available in UL Type 3R for indoor/ outdoor use. A UL Type 1 window-door version is available for indoor applications. The integral fans provide cooling for internallymounted equipment. The enclosures provide protection against water, dirt and other contaminants. ProTek is an excellent choice for applications where space is at a premium and the only option is wall mounting. ProTek comes in a broad range of sizes, materials and configurations to meet many demanding applications.

Specifications

Application
PROTEK Single-Door Fan Package cabinets are an excellent, off-the-shelf choice for mounting 19-in. rack, panel-mounted devices or other electronic equipment. An integral top solar/drip shield and thermostatically-controlled fans provide airflow to cool in
Color
Light Gray
Country of Origin
US
Finish
Lt Gray
Length1
45.0000
Material
Steel
NEMA_Rating
3R Weather-resistant, except dust
Special Features

  • Additional rack angles in tapped and square hole versions can be added to the cabinet
  • All seams are fully welded and ground smooth
  • Door and body are provided with ground studs to facilitate proper bonding and grounding of the cabinet
  • Incoming air filter made of expanded aluminum
  • Integral top solar/drip shield
  • Integral top with (2) 6 in (272 cfm) or 4 in (113 cfm) fans powered by 120 VAC via cord with standard NEMA plug 5-15P
  • Keylocking wing knob provides access control to the cabinet
  • M6 door and body ground studs are masked from paint
  • One set of plated, self-grounding, tapped 10-32 rack angles per EIA universal spacing standards, which can be adjusted front to back, is provided with each cabinet
  • Perforated, vented base with internal, expanded metal and serviceable filter
  • Premium seamless, foam in place gasket prevents contaminants from entering the cabinet
  • Solid door cabinet provides complete physical and visual protection
  • Two thermostatically controlled, long life, high performance fans mounted into top
  • Window door, made of scratch-resistant safety glass, provides visual monitoring of internal equipment while maintaining equipment protection
  • Window made of 1/4 in safety glass
Standard
UL 508A Listed, File Number E61997, cUL Listed per CSA C22.2 No. 94, File Number E61997, Solid Door: Type 3R, Window Door: Type 1, NEMA / EEMAC: Type 1 or 3R, IEC 60529, IP30 or IP 32
Sub_Brand
Hoffman
Type
PROTEK™ Single-Door Fan Packages
