Hoffman Hoffman PTHS242415X


Description

Industry Description

ProTek Double-Hinged, UL and NEMA Type 4, 4X or 12, 24.09x23.62x14.96, Stainless Steel

Modified Industry Description

PTK DH SD 24X24X15 SS 4X

AD Description

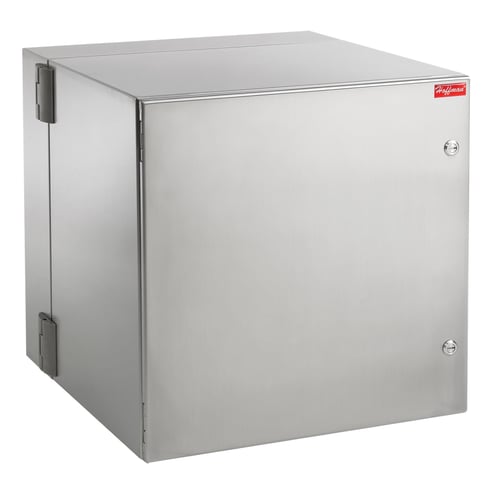

Hoffman PROTEK® PTHS242415X DWDH2 Double Hinged Cabinet, 24.09 in L x 23.62 in W x 14.96 in D, NEMA 4/4X/12 NEMA Rating, 304 Stainless Steel

Vendor Description

ProTek Double-Hinged cabinets are an excellent, off-the-shelf choice for mounting 19 in. Rack, panel-mounted devices or other electronic equipment. The cabinets are designed to provide both front and rear access to 19 in. Rack-mounted equipment. They provide protection against water, dirt, corrosive agents and other contaminants. ProTek is an excellent choice for applications where space is at a premium and the only option is wall mounting. ProTek comes in a broad range of sizes, materials and configurations to meet many demanding applications.

Specifications

Application
Controls and Drives; Corrosive Environments; Datacom and Telecom Equipment; Networking, Storage and Data Center
Color
Unpainted
Country of Origin
US
Finish
Polyester Powder Coated
Length1
24.09
Material
304 Stainless Steel
NEMA_Rating
NEMA 4/4X/12
Series
DWDH2
Special Features

  • All seams are fully welded and ground smooth
  • Doors, center section and wall section are provided with ground studs to facilitate proper bonding and grounding of the cabinet
  • Front and rear access to 19 in rack equipment provided by three part design door, center section and wall section
  • Keylocking wing knob is included on painted steel offering, providing access control to the cabinet
  • On 28 in (700 mm) wide enclosures, a 4 in vertical cable manager with composite fingers is provided on hinge side of cabinet
  • One set of plated, self-grounding, tapped 10-32 rack angles per EIA universal spacing standards, which can be adjusted front to back, is provided with each center section of the cabinet
  • Premium seamless, foam in place gasket prevents contaminants from entering the cabinet
  • Solid door provides complete physical and visual protection
  • Stainless steel cabinet is provided with a quarter turn slotted latch
  • Window door, made of scratch-resistant safety glass, provides visual monitoring of internal equipment while maintaining equipment protection
Standard
UL 508A Listed, File Number E61997, cUL Listed per CSA C22.2 No. 94, File Number E619967, Solid Door: Type 4 and 12, Window Door: Type 12, Solid Door, Stainless Steel: Type 4, 4X and 12, NEMA / EEMAC: Type 4, 4X or 12, IEC 60529, IP66 or IP55
Sub_Brand
ProTek
Type
Double Hinged
