Hoffman Hoffman PSFD20610BNS


Description

Industry Description

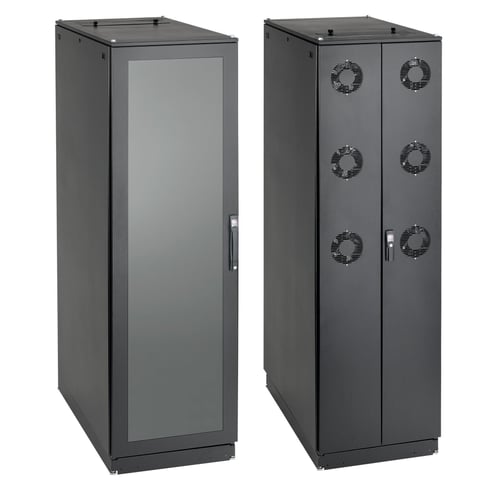

ProLine FloTek FD (Floor Ducted) Server Cabinet, 2000x600x1000mm, Black, Steel

Modified Industry Description

SVR PKG FLOOR DUCT NO SIDES

AD Description

Hoffman Proline™ FLOTEK™ PSFD20610BNS DPSR Floor Ducted Voice Data Server Cabinet, 2000 mm L x 600 mm W x 1000 mm D, Steel

Vendor Description

The ProLine FloTek FD Server Cabinet uses the cooling power of two banks of independently-powered fans in the back of the cabinet and an integral front floor duct to direct air into server intakes when positioned over a cutout in a raised data center floor. The cabinet air inlet requires alignment with a floor cutout so blocking plates can direct cool air from the floor plenum across the front of the equipment.

Specifications

Application
Networking, Storage and Data Center
Color
Black Oxide
Country of Origin
MX
Finish
Polyester Powder Coated
Length1
2000
Material
Steel
Series
DPSR
Special Features

  • (2) sets of 19 in square hole rack angles with EIA universal spacing support both front and rear of equipment
  • (6) 6 in fans with integral finger guards in the rear doors pull floor ducted air through cabinet and exhaust it to hot aisle
  • 16 or 14 ga steel front door frame, rear door, sides and cover
  • 3-point locking pushbutton swing handle on front door provides easy but controlled access
  • Blocking plates inside the cabinet on both sides and the top prevent recirculation of hot exhaust air
  • Duct flange in base for connecting to floor duct
  • Fans on each door can be independently powered to provide redundant cooling
  • Fans provide up to 1400 cfm airflow
  • Front window door provides a view of equipment inside the enclosure without opening the door
  • Models without sides fit together quickly for easy installation in ganged applications
  • Rack angles have square holes with EIA 310-D spacing
  • Rear doors are split for easy access and include a low profile, locking swing handle
  • Sliding gland plate in top covers large opening that allows easy routing of network cables, pre-terminated cables and patch panels
  • Solid top helps direct airflow across equipment
  • Welded 12 ga steel frame
  • Window is made of 1/8 in THK acrylic
  • Without sides
Standard
EIA 310-D
Sub_Brand
ProLine
Type
Floor Ducted Voice Data
