Hoffman Hoffman CSD20168SSST


Description

Industry Description

Concept Sloped Top, Type 4X, 20.00x16.00x8.00, SS Type 304

Modified Industry Description

304SS TYPE 4X WALLMT SLOPE TOP

AD Description

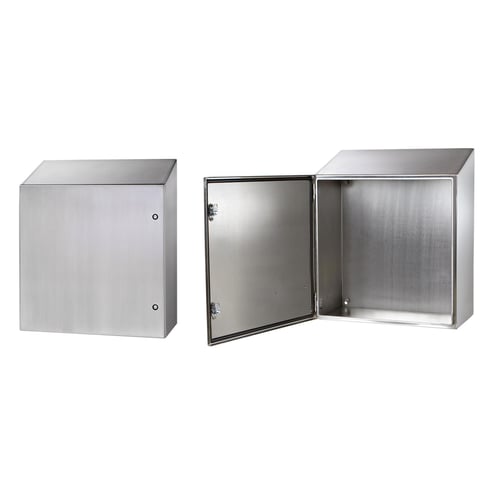

Hoffman CONCEPT™ CSD20168SSST CWS2 1-Door Sloped Top Enclosure, 20 in L x 16 in W x 8 in D, NEMA 4X NEMA Rating, 304 Stainless Steel

Vendor Description

For indoor or outdoor applications that require a sloped top and corrosion protection from chemicals and water. Concept Enclosures feature streamlined styling with an attractive stroked finish and flush, stainless steel quarter-turn latches for secure closure.

Specifications

Application
For indoor or outdoor applications that require a sloped top and corrosion protection from chemicals and water. CONCEPT™ Enclosures feature streamlined styling with an attractive stroked finish and flush, stainless steel quarter-turn latches for secure cl
Color
Unpainted
Country of Origin
US
Finish
Brushed
Length1
20
Material
304 Stainless Steel
Mounting_Type
Wall
NEMA_Rating
NEMA 4X/IP66
Series
CWS2
Size
20.000 x16.000 x8.0000 in
Special Features

  • 20 deg sloped top prevents pooling of liquids and accumulation of other debris
  • Bonding provision on door, grounding stud on body
  • Corner formed doors are interchangeable and easily removed by pulling clip style hinge pins
  • External formed 90 deg body flange channels away liquids
  • Furnished hardware kit consists of panel mounting fasteners, grounding hardware and sealing washers for wall mounting holes
  • Installation instructions provided
  • Manufactured from 16 and 14 ga 304 stainless steel
  • Minimum width body flange provides maximum body opening
  • Mounting holes in back of body for direct mounting for optional external mounting brackets
  • Panel mounting studs fit optional CONCEPT™ panels and other accessories
  • Provision on door for optional door stop kit
  • Seamless foam in place gasket
  • Seams continuously welded and ground smooth
  • Self-grounding latch system with double seal
  • Stainless steel quarter turn latches furnished with flush slotted insert
  • Type 304 stainless steel hidden hinges promote clean aesthetic appearance (two hinges on models under 36 in in height, three hinges for models 36 in and taller)
Standard
Mounting brackets required to meet UL/CSA external mounting requirements., UL 508A Listed, Type 3R, 4, 4X, 12, File No. E61997, cUL Listed per CSA C22.2 No 94, Type 3R, 4, 4X, 12, File No. E61997, NEMA/EEMAC Type 3R, 4, 4X, 12, 13, CSA File No. 42186: Typ
Sub_Brand
Hoffman
Type
1-Door Sloped Top
