Hoffman Hoffman A86M4ELPG

Name: Hoffman A86M4ELPG
Brand: Hoffman
SKU: 2529592
Price: 13584.74 USD
Availability: InStock

Hoffman A86M4ELPG

Kirby Risk #: 2529592

UPC: 78351026432, 783510264321, 00783510264321

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Hoffman

Description

Industry Description

Free-Stand, Multi-Door, Type 12, 86.12x149.19x14.12, Gray, Steel

Modified Industry Description

86X149X14 4 DOOR

AD Description

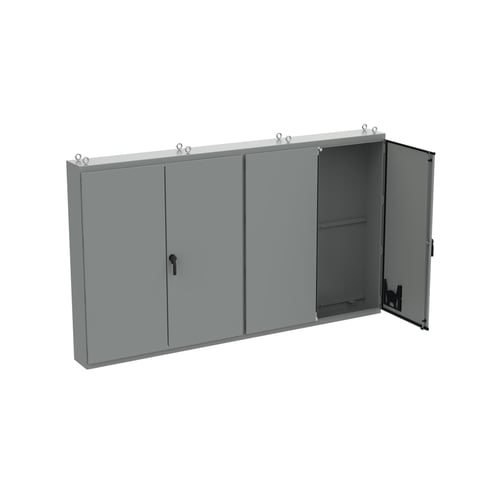

Hoffman A86M4ELPG A27 Multi-Door Freestanding Enclosure, 86.12 in L x 149.19 in W x 14.12 in D, NEMA 12/IP55 NEMA Rating, Steel

Vendor Description

Enclosures are available with three, four or five doors for housing larger control systems in industrial environments.

Application	Controls and Drives; Power Distribution
Color	Gray
Country of Origin	MX
Finish	Polyester Painted
Length1	86.12
Material	Steel
NEMA_Rating	NEMA 12/IP55
Series	A27
Size	86.12X149.19X14.12 in
Special Features	3-point latches operated by padlocking handle At 2-door openings, gasketed overlapping doors eliminate need for center posts Bonding provision on door Concealed, easy to remove hinges Heavy duty lifting eyes anchored into reinforced top Heavy steel back stiffeners maintain flatness and increase rigidity Large data pocket is high impact thermoplastic Mechanical interlock standard on each enclosure with right hand door serving as master door, doors can be closed in any order Oil-resistant door gasket Overlapping, gasketed openings on 2-door center posts Panel mounting studs Provisions for mounting fluorescent lights Seams continuously welded and ground smooth, no holes or knockouts
Standard	UL 508A Listed, Type 12, File No. E61997, cUL Listed per CSA C22.2 No 94, Type 12, File No. E61997, NEMA/EEMAC Type 12, CSA, File No. 42186, Type 12, IEC 60529, IP55
Sub_Brand	Hoffman
Type	Multi-Door
