Tork Tork 2007A

Tork 2007A

Kirby Risk #: 2524149

UPC: 78626162013, 786261620132, 00786261620132

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Tork

Description

Modified Industry Description

Instant Response Thermal Turn Lock 1000W

AD Description

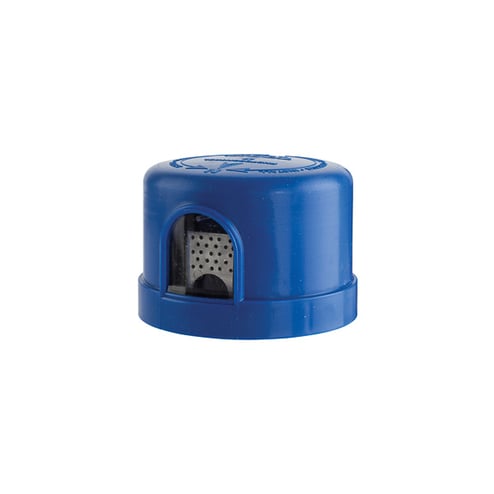

NSI Tork® 2007A Quick Response Photocontrol, 105 to 285 VAC, 1000 W Tungsten, 1800 VA Ballast, Turn Lock Mount, Polycarbonate

Application	Street-Highway Lighting
Brand Name	Tork
Color	Blue
Country of Origin	MEX
Enclosure	Polypropylene
Environmental_Conditions	-40 to 158 deg F Operating Temperature
Frequency_Rating	50/60
Material	Polycarbonate
Mounting	Turn Lock
Mounting_Type	Turn Lock
Operating_Cycles	6000
Operating_Temperature	-40 to + 158 F
Sensitivity	1 to 3 FC (ON)/3 FC Average (OFF) to (ON) Ratio
Sensor	Cadmium Sulphide Cell
Size	H=2.187 - W=3.187
Special Features	Conformal coated cadmium sulphide photocell resists effects of moisture and airborne contaminants DC relay has positive snap action switching, reducing bounce and prolonging contact life Photocell responds to the light spectrum near to that of a human eye Polycarbonate provides high impact performance, flammability resistance and electrically safe operations
Standard	UL-CSA
Sub_Brand	NSi
Supply_Voltage	105-285
Timing_Range	Instant On and 3 to 5 sec Off
Type	Quick Response
Voltage Rating	105 to 285
