Panduit Pan-Net Panduit Pan-Net DPA245E88TGY


Description

Industry Description

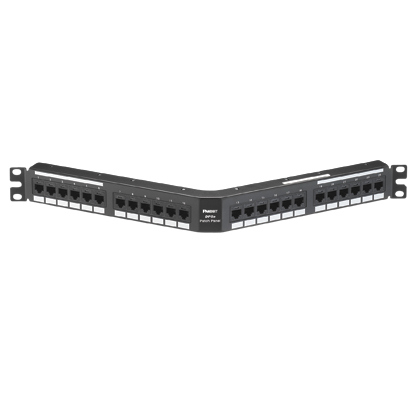

DataPatch 24-port category 5e punchdown angled patch panel in black, (1 RU).

Modified Industry Description

PUNCHDOWN PATCH PANEL, CAT 5E,

AD Description

Panduit® Pan-Net® Data-Patch™ DP5e™ DPA245E88TGY 1RU Angled Patch Panel, 24 Ports, Cat 5e, 26 to 22 AWG Terminal, Steel

Vendor Description

Category 5e/class D, punchdown patch panels shall terminate 4-pair, 22 to 26 AWG, 100 Ohm unshielded twisted pair cable with an industry standard single wire 110 punchdown tool. Patch panels shall include a universal label coded for T568A and T568B wiring schemes and mount to 19 and 23 in racks. Patch panels shall be easy to identify with pre-printed numbers, write on areas and optional label kits.

Specifications

Application
NA
Color
Black
Country of Origin
MEX
Length1
19.9000
Material
Steel
Special Features

  • 100% performance tested confidence that each jack module will deliver the critical electrical performance requirements
  • Angled design facilitates proper bend radius control and minimizes the need for horizontal cable managers
  • Identification can be clearly identified with optional labels and icons for port identification
  • Individually serialized each port is marked with quality control number for future traceability
  • Industry standard termination tool PDT110 single wire 110 punchdown tool termination tool ensures conductors are fully terminated
  • RJ45 interface industry standard interface provides a quick and easy plug and play connection to RJ45 patch cords, backwards compatible
Standard
Exceeds channel and component requirements of ANSI/TIA-568-C.2 Category 5e and ISO 11801 Class D standards at swept frequencies 1 to 100 MHz. Meets ANSI/TIA-968-A requirements; Meets IEC 60603-7, Supports IEEE 802.3af, 802.3at, and IEEE 802.3bt type 3 an
Sub_Brand
Panduit
Type
Punchdown Patch Panel
