Lithonia Lighting Lithonia Lighting LBL4 LP835


Description

Industry Description

Surface Wraparound, LED, 4ft, 80+ CRI, 3500K, SKU - 217X9P

Modified Industry Description

4 FT WHITE LED WRAPAROUND 3500K 120/277V

AD Description

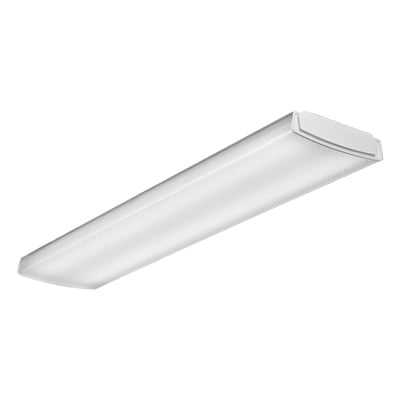

Lithonia Lighting® LBL4 LP835 Curved Basket Low Profile Wraparound, LED Lamp, 120/277 VAC, High Gloss Baked White Polyester Housing

Specifications

Application
Education, Offices & Banks, Retail
Average_Life
60000
Brand Name
Lithonia Lighting
Color
White
Color_Rendering_Index_CRI
80
Color_Temperature
3500
Construction
New Construction,Remodel
Country of Origin
MX
Dimensions
48 in L x 10 in W x 2-3/4 in H
DimensionsInches
48 x 10 x 2.75
DIMMABLE
True
Environmental_Conditions
Indoor
Finish
Gloss
Fixture_Type
Wraparound
Housing_Material
Steel
Lamp_Included
True
Lamp_Type
LED
Lamp_Wattage
27
Lens_Material
Acrylic
Lens_Type
10 Low Mount 360 deg Coverage
Lumens
4188
Material
Steel
Mounting
Recessed, Surface
Number_Of_Bulbs_Unit
Not Applicable
Power_Source
Hardwired
Special Features

  • Continuous side flanges on fixture body provide light trap and continuous diffuser support to prevent accidental opening and simplify maintenance
  • Curved prismatic diffuser with linear side prisms and highly transmissive light diffusing film minimizes lamp image and provides high angle brightness control
  • Five stage iron phosphate pretreatment assure superior paint adhesion and rust resistance
  • LBL LED wraparound provides a digital lighting platform to deliver general ambient lighting for surface mount applications
  • Long life LED, coupled with high efficiency drivers, provide superior quantity and quality of illumination for extended service life
  • Luminous end plates soften appearance for improved aesthetics
  • Metal parts are die formed from code gauge steel, prismatic diffuser is 100% acrylic with sonically welded luminous ends
  • Narrow housing
  • Painted parts finished with high gloss, high reflectivity baked white polyester enamel
  • Step level dimming option allows system to be switched to 50% power for compliance with common energy codes while maintaining fixture appearance
  • The LED system delivers long life and excellent color to ensure a quality, low maintenance lighting installation
Standard
CSA, DLC Premium, DLC Standard, IC
Style
Traditional
Sub_Brand
Lithonia Lighting
Type
Wraparound
Voltage Rating
120/277
Wattage
50
