NSI NSi L30048B
NSI L30048B
Kirby Risk #: 2520678
UPC: 66238133708, 662381337085, 00662381337085
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description

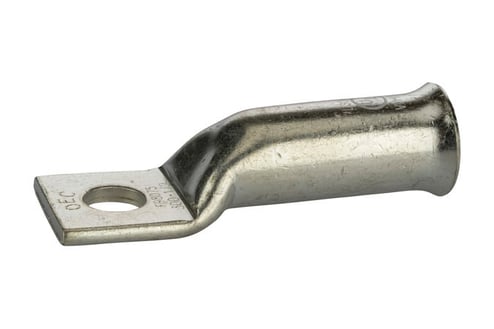

1 Hole Long Barrel Copper Compression Lug for Flexible Copper Cable 300 MCM- 1/2" Bolt Compression lugs for flexible copper cables are connects that have a gentle, continuous flared end to ensure ease of cable insertion of flexible and extra flexible cables such as locomotive, welding, mining cable and more. The flared end also reduces pressure on the cable strands after installation and protects them from chafing and breakage as a result of cable movement. Tin-plated for corrosion resistance. Rated 600 volts for copper cables only. Single mounting hole.
Modified Industry Description
300 MCM CU COMPRESSION LUG, 1/2
AD Description
NSI L30048B L-B Series 1-Hole Compression Lug, 300 kcmil Stranded Conductor, 1/2 in Stud, Copper
Specifications
| Application |
Terminate, Splice, Tap Power Connectors
|
|---|---|
| Color |
White
|
| Country of Origin |
IND
|
| Environmental_Conditions |
90 C
|
| Finish |
Tin Plated
|
| Length1 |
3.3900
|
| Material |
Copper
|
| Mounting |
1/2 Mounting Hole
|
| Size |
L=3.38 - W=1.18 - OD=.815 - ID=.657
|
| Special Features |
|
| Standard |
UL486
|
| Sub_Brand |
NSi
|
| Type |
Long Barrel - One Hole - Belled End
|
| Voltage Rating |
600
|
