NSI NSi DRTB25F


Description

Industry Description

25 Amp Din Rail Mountable 25 Amp Din Rail Mountable will accept #22 to two #12 wires per terminal and include captive wire clamps for use with stranded or solid wire or ring terminals. Flat top marking with either pen or stick-on labels. Rated 25 Amps, 600 Volts.

Modified Industry Description

25 AMP DIN RAIL MOUNTABLE

AD Description

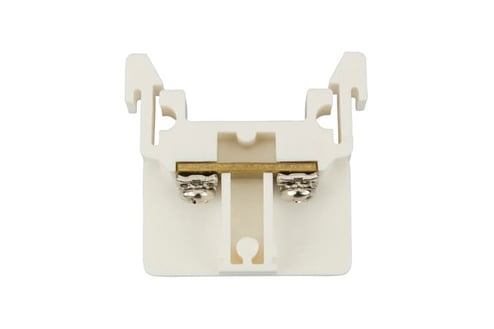

NSI Terminal Blocks™ DRTB25F Rail Mounted Terminal Block, Snap Lock Mounting, 25 A, 600 VAC, Thermoplastic, White

Specifications

Application
Rail Mounting
Color
White
Country of Origin
USA
Finish
Thermal Plastic
Length1
1.7500
Material
Thermal Plastic
Mounting
Snap Lock
Size
L=1.75 - W=.375 - H=1.625
Special Features

  • Blocks form their own barriers
  • Blocks include integral mounting feet with screw slot for direct panel mounting, if desired
  • Component pieces may be mixed in an assembly
  • Cost effective solution to connecting and terminating a wide variety of sizes and styles of wiring
  • Individual blocks can easily be inserted or removed without disturbing adjacent blocks
  • Insertion is made by snapping the block in place by hand
  • Mounting rail is fastened by screws to the mounting surface
  • No special brackets or hardware are needed
  • Only a screwdriver is needed for removal
Sub_Brand
NSi
Type
Din Rail
