Bussmann Bussmann BSPD48RJ45
Bussmann BSPD48RJ45
Kirby Risk #: 2515141
UPC: 05171239897, 051712398978, 00051712398978
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Bussmann
Description
Industry Description
Surge Protective Devices, RJ45, DIN rail, BSPD, Data signal, 48V
Modified Industry Description
SURGE PROTECTIVE DEVICE 48V DIN RAIL
AD Description

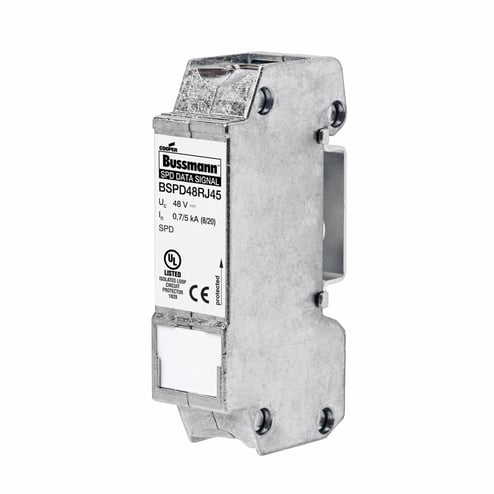

Bussmann BSPD48RJ45 Surge Protective Device, 48 VAC
Vendor Description
The BSPD48RJ45 is installed between the patch panel and the active component (a switch for example). The snap-in mechanism of the supporting foot allows the SPD to be safely grounded via the DIN-Rail. For single applications, the BSPD48RJ45 comes with a supplied mounting bracket with cable lug. Fulfilling the requirements of Category 6, the BSPD48RJ45 can be universally used for all data services up to nominal voltages of 48 VAC. It is well suited for existing services such as Gigabit Ethernet, ATM, ISDN, Voice over IP and Power over Ethernet (PoE+ acc. to IEEE 802.3at up to 57V) and similar applications in structured cabling systems according to Class E up to 250MHz. Protection of all pairs by means of powerful gas discharge tubes and one adapter filter matrix per pair.
Specifications
| Application |
Industrial facilities/ Factories
|
|---|---|
| Class |
RJ45
|
| Country of Origin |
DE
|
| Dimensions |
76.1 mm H x 19 mm W x 36.15 mm D
|
| Environmental_Conditions |
-40 to 80 deg C Operating Temperature
|
| Length1 |
0.0010
|
| Material |
Die Cast Zinc
|
| Mounting_Type |
DIN Rail
|
| Operating_Temperature |
-40 to 80 °C
|
| Special Features |
|
| Standard |
Contact factory
|
| Sub_Brand |
Eaton
|
| Type |
Surge Protectove
|
| Voltage Rating |
48
|
