TPI TPI F2906036S


Description

Industry Description

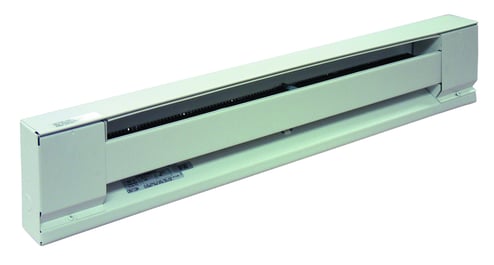

Electric Baseboard - Stainless Steel Element Convection Heater, 208 V, 1 PH, 2.9 AMP, Steel Housing Material, Wall Mounting, Dimensions- 36 Length X 2-1/2 Depth X 6 Height IN, 600 WTT, BTU Rating- 2040, Ivory

Modified Industry Description

600W 208V 36 IN BASEBOARD HTR,

AD Description

TPI F2906036S 2900S 1-Phase Standard Electric Baseboard Convection Heater, 2040 Btu/hr Capacity, 208 VAC, 600 W Power Rating, Wall Mount

Specifications

Amperage Rating
2.9
Application
Indoor-Commercial/Some Industrial/Some Residential-208 volt
Color
Ivory
Country of Origin
US
Dimensions
36 in L x 6 in H x 2-1/2 in D
Finish
painted
Length1
40.0000
Material
Steel
Mounting
Wall
Mounting_Type
Wall
Phase
1
Power_Rating
600
Series
2900S
Special Features

  • A full length wireway provided along the back of the heater
  • Heater can be mounted to the wall by using the key hole knockouts every 4 in at the back of the heater
  • Optional in-built thermostats field installed in the junction box
  • Over temperature thermal limit extends entire length of heated area
  • Painted 22 ga steel front with 20 ga junction boxes located on each end of the heater - junction boxes contain quick connect cable clamps and 6 in ground lead wires
  • Stainless steel heating element and aluminum fins
Standard
ETLus Listed
Sub_Brand
TPI
Type
1-Phase Standard
Voltage Rating
208
