O-Z/Gedney O-Z/Gedney 4Q4300LT
O-Z/Gedney 4Q4300LT
Kirby Risk #: 2508880
UPC: 78312661993, 783126619935, 00783126619935
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: O-Z/Gedney
Description
Industry Description

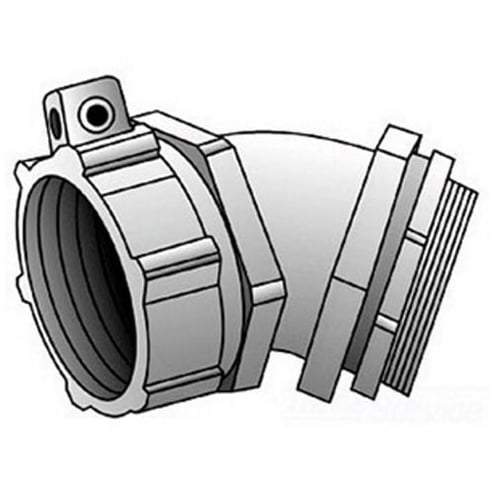

OZ-Gedney Ground-Tite Type 4Q-LT Grounding Liquid Tight 45 DEG Connector With Lug, Size: 3 IN, Connection: Tapered MNPT Hub, Conductor Range: 1 - 4/0 AWG, Malleable Iron Body And Nut, Steel Ferrule, Finish: Zinc Electroplated, NEMA Rating: NEMA 4, Insulated Throat, 5-5/16 IN Width, Dimension A: 6-1/2 IN, 3-1/16 IN Turning Radius Gland Nut, 1-1/8 IN Thread Length, Third Party Certification: UL File Number E-24264, CSA 9795, Hazardous Locations: Class I, Division 2 Per NEC 501.4(B), Class I, Zone 2 Per NEC 505.15(C)(2), Class II, Division 1 Per NEC 502.4(A)(1)(e), Class II, Division 2 Per NEC 502.4(B)(2), Class III, Division 1 Per NEC 503.3(A)(2), Class III, Division 2 Per NEC 503.3(B), Intrinsically Safe Per NEC 504.20, For Liquidtight Flexible Metal Conduit
Modified Industry Description
3 IN 45 DEG CONN LFMC W/LUG
Specifications
| Application |
For Liquidtight Flexible Metal Conduit
|
|---|---|
| Connection |
Tapered MNPT Hub
|
| Country of Origin |
MX
|
| Dimensions |
7.63 in H x 5-5/16 in W
|
| Finish |
Zinc Electroplated
|
| Insulation |
Insulated Throat
|
| Length1 |
8.6000
|
| Material |
Malleable Iron
|
| NEMA_Rating |
NEMA 4
|
| Series |
4Q-LT
|
| Size |
3
|
| Special Features |
|
| Standard |
Third Party Certification: UL File Number E-24264, CSA 9795, Hazardous Locations: Class I, Division 2 Per NEC 501.4(B), Class I, Zone 2 Per NEC 505.15(C)(2), Class II, Division 1 Per NEC 502.4(A)(1)(e), Class II, Division 2 Per NEC 502.4(B)(2), Class III, Division 1 Per NEC 503.3(A)(2), Class III, Division 2 Per NEC 503.3(B), Intrinsically Safe Per NEC 504.20
|
| Sub_Brand |
O-Z/Gedney
|
| Type |
Concretetight Liquidtight Oiltight Positive Grounding Raintight
|
