General Cable General Cable C0560A.41.10


Description

Industry Description

Power-Limited Tray Cable, Foil Shield or Foil/Braid Shield UL 2464, NEC Type PLTC/CM, CSA CMG, 2P/18 16/30TC OA SH TYPE PLTC, 1000' Reel

Modified Industry Description

2P/18 16/30TC OA SH TYPE PLTC

AD Description

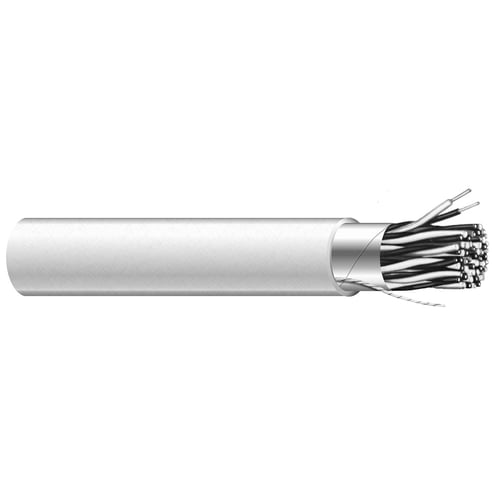

General Cable® Carol® C0560A.41.10 Foil Shielded Multi-Paired Power Limited Tray Cable, 300 VAC, (2) 18 AWG Fully Annealed Stranded Tinned Copper Conductor, 1000 ft Reel L

Specifications

Application
PowerLimited circuits Intercom systems Business machines Computer interconnects Suitably marked for appropriate tray cable installations Petrochemical control systems Burglar alarms Suggested voltage rating: 300 vol
Brand Name
General Cable
Color
Gray
Conductor Material
Annealed Tinned Copper
Conductor Size
18
Country of Origin
USA
Insulation_Material
PVC/FMPE
Jacket_Material
PVC/FMPE
Number Of Conductors
2
Special Features

  • 0.016 in THK nominal insulation
  • 0.042 in THK nominal jacket
  • 40 pF/ft capacitance between conductors, 72 pF/ft capacitance between one conductor and other conductors connected to shield
  • Fully annealed stranded tinned copper per ASTM B-33 conductor and twisted pairs
  • NEC type PLT/CM, CSA CMG
  • Premium grade, color coded PVC or FMPE insulation and jacket
  • Robust, highly durable
  • Shield is 100% Flexfoil® aluminum/polyester, 25% overlap foil facing out, stranded tinned copper drain wire and 65% tinned copper braid (C7112A, C7114A and C7116A only)
  • Sunlight-resistant jacket
  • Superior temperature characteristics
Standard
NEC Article 725 PowerLimited Try Cable (UL: 105°C or 60°C, 300V) NEC Article 800 Communications Cable (UL: 105°C or 60°C, 300V) US Style 2464 (UL: 80°C, 300V) CSA CMG (CSA: 60°C) or CM c(UL) RoHS Compliant Directive 2002/95/EC Designed t
Sub_Brand
General Cable
Temperature_Rating
-20 to 105
Type
Type PLTC Multi-Paired Foil Shielded
Voltage Rating
300
Width_2
13.7500
