NSI NSi GL50058B
NSI GL50058B
Kirby Risk #: 2494699
UPC: 66238103684, 662381036841, 00662381036841
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description
1 Hole Short Barrel Copper Compression Lug for Flexible Copper Cable 500 MCM- 5/8" Bolt Compression lugs for flexible copper cables are connects that have a gentle, continuous flared end to ensure ease of cable insertion of flexible and extra flexible cables such as locomotive, welding, mining cable and more. The flared end also reduces pressure on the cable strands after installation and protects them from chafing and breakage as a result of cable movement. Tin-plated for corrosion resistance. Rated 600 volts for copper cables only. Single mounting hole.
Modified Industry Description
500 MCM CU COMPRESSION LUG, 5/8
AD Description

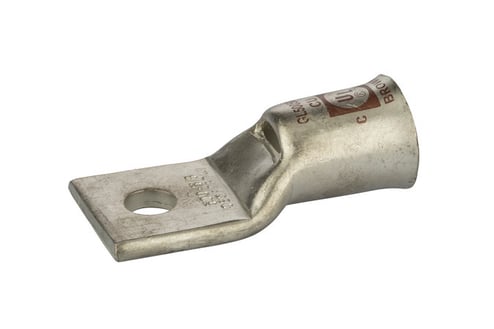

NSI GL50058B GL-B Series 1-Hole Compression Lug With Peep Hole, 500 kcmil Stranded Conductor, 5/8 in Stud, Copper
Specifications
| Application |
Terminate, Splice, Tap Power Connectors
|
|---|---|
| Color |
Brown
|
| Country of Origin |
IND
|
| Environmental_Conditions |
90 C
|
| Finish |
Tin Plated
|
| Length1 |
3.2800
|
| Material |
Copper
|
| Mounting |
5/8 Mounting Hole
|
| Size |
L=3.28 - W=1.54 - OD=1.06 - ID=.830
|
| Special Features |
|
| Standard |
UL486
|
| Sub_Brand |
NSi
|
| Type |
Short Barrel - One Hole - Belled End
|
| Voltage Rating |
600
|
