Panduit Pan-Net Panduit Pan-Net WGBTMWFBL


Description

Industry Description

The Wyr-Grid® Overhead Cable Tray Bottom Waterfall is designed to maintain a 1.38in (35mm) bend radius while transitioning fiber optic, power, and copper data cables from within the Wyr-Grid® wire rack down into racks in cables. Waterfalls simply snap on to 8in (203mm), 12in (305mm), 18in (457mm), 24in (610mm) and 30in (762mm) pathway sections, and can even be installed side by side to increase their overall width. All while keeping costs low thanks to a fast, strong, simple installation with fewer components. Black powder coat, 1pc.

Modified Industry Description

Bottom Waterfall for WyrGrid Pathway B

AD Description

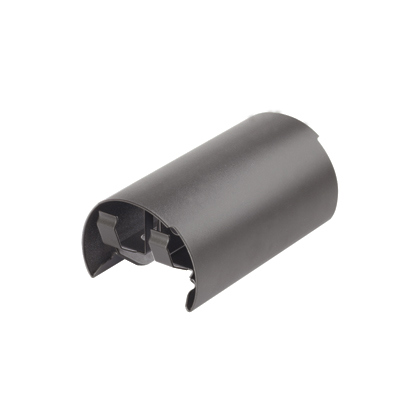

Panduit® Wyr-Grid® WGBTMWFBL Bottom Waterfall Trough, 5.3 in L x 2.94 in W x 2.11 in H, For Use With Wyr-Grid™ Pathway System, Steel

Specifications

Application
The Wyr-Grid® Overhead Cable Tray provides 1.38 inch (35mm) Bend Radius Control for Cables Transitioning Down into the Racks or Cabinets from within the Wyr-Grid® Wire Rack.
Color
Black
Country of Origin
CHN
Finish
Powder Coated
Length1
5.3
Material
Steel
Special Features

  • All while keeping costs low thanks to a fast, strong, simple installation with fewer components
  • Designed to maintain a 1.38 in bend radius while transitioning fiber optic, power and copper data cables from within the Wyr-Grid™ wire rack down into racks in cables
  • Waterfalls simply snap on to 8, 12, 18, 24 and 30 in pathway sections and can even be installed side by side to increase their overall Width
Standard
RoHS Compliant
Sub_Brand
Wyr-Grid?®
Type
Bottom Waterfall
