Siemens Siemens HMXD63B800H
Siemens HMXD63B800H
Kirby Risk #: 2493386
UPC: 78364332027, 783643320277, 00783643320277
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description

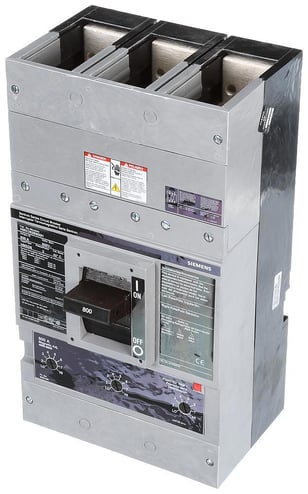

SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED 100 PERCENT RATED STANDARD 40 DEG C BREAKER MD FRAME WITH HIGH BREAKING CAPACITY. 800A 3-POLE (50KAIC AT 600V) (65KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES NO LUGS INSTALLED. DIMENSIONS (W x H x D)IN 9.00 x 16.0 x 6.00.
Modified Industry Description
BREAKER MD 3P 800A 600V 50KA FXD
AD Description
Sentron™ HMXD63B800H Low Voltage Molded Case Circuit Breaker, 600 VAC, 800 A, 50 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Specifications
| Actuator |
Varying
|
|---|---|
| Amperage Rating |
800
|
| Application |
Standard 40C Breaker
|
| Class |
NJE
|
| Connection |
N/A
|
| Country of Origin |
MX
|
| Dimensions |
10 in L x 12 in W x 19 in H
|
| Enclosure |
Varying
|
| Environmental_Conditions |
N/A
|
| Frame |
HMXD6
|
| Frequency_Rating |
50/60
|
| Interrupt_Rating |
50
|
| Length1 |
19.0000
|
| Material |
N/A
|
| Number_Of_Poles |
3
|
| Operating_Temperature |
40C
|
| Phase |
3
|
| Special Features |
|
| Standard |
UL/HACR/100% Rated
|
| Sub_Brand |
Siemens
|
| Temperature_Rating |
40
|
| Type |
Low Voltage
|
| Voltage Rating |
600
|
