Hoffman Hoffman N431216G050


Description

Industry Description

SpectraCool Narrow Indoor/Outdoor, 43.00x11.50x14.00, Lt Gray, Steel

Modified Industry Description

11000BTU 115V

AD Description

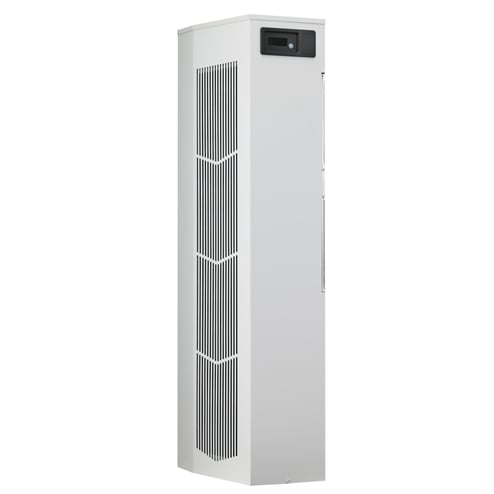

Hoffman Spectracool™ N431216G050 MCLG Indoor Narrow Enclosure Air Conditioner, 115 VAC, 22 A, 50/60 Hz, NEMA 12/3R/4 Enclosure, 12000 Btu/hr

Vendor Description

SpectraCool Narrow Air Conditioners provide a space-saving solution for low-depth cabinet needs. Narrow models are designed to fit on 12-in. (300-mm) deep floor- and wall-mount enclosures.

Specifications

Amperage Rating
22
Application
Industrial automation, Waste water treatment systems, Package handling equipment, Security and defense systems
Brand Name
Hoffman
Color
Light Gray
Country of Origin
US
Frequency_Rating
50/60
Material
Steel
Operating_Temperature
-40-131
Special Features

  • Attractive industrial design with minimal use of visible fasteners
  • Cleanable reusable aluminum mesh filter protects coils for maximum cooling performance
  • Cutout adapter options for enclosures with GENESIS™ air conditioners enable users to easily transition to the new unit
  • Dust-resistant condenser coil allows the unit to be run filterless in most applications
  • Easy mount flanges for simple installation
  • Energy efficient rotary compressor on N36 and N43 models
  • Galvanized sheet metal cover for rugged factory environments
  • Mounting hardware, gaskets and user manual furnished with the unit
  • Narrow design accommodate 12 in D cabinets
  • R407C and R134A earth friendly refrigerants
  • Reliable mechanical thermostat is located behind the cover of the unit, air conditioner models include digital display on ambient side
Standard
UL/cUL Listed Type 12, 3R, 4, 4X optional, CE, IP 56 Internal Loop, IP 34 on External Loop, Telcordia GR-487 capable (Outdoor)
Sub_Brand
Hoffman
Type
Indoor Narrow
Voltage Rating
115
