Hubbell Hubbell HBLVSQ3034
Hubbell HBLVSQ3034
Kirby Risk #: 2489867
UPC: 78358524266, 783585242668, 00783585242668
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

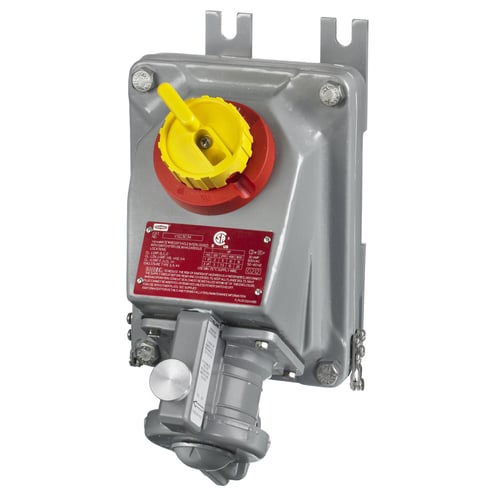

Hubbell Wiring Device Kellems, Interlocked Hazardous LocationReceptacle, 30A 600V AC, 3-Pole 4-Wire Grounding
Modified Industry Description
60A 600V INTERLOCK RECPT
AD Description
Wiring Device-Kellems HBLVSQ3034 1-Phase Unfused Mechanical Interlock Receptacle, 600 VAC, 30 A, 3 Poles, 4 Wires, Gray
Specifications
| Amperage Rating |
30
|
|---|---|
| Application |
Hazardous Locations, Industrial
|
| Color |
Gray
|
| Connection |
Screw Terminals
|
| Conductor Size |
#10 AWG
|
| Country of Origin |
US
|
| Environmental_Conditions |
Classified Hazardous
|
| Frequency_Rating |
50/60
|
| Horsepower |
20
|
| Length1 |
15.3000
|
| Material |
Composite/Thermoplastic
|
| Mounting |
Screw Mount
|
| NEMA_Rating |
Non-NEMA
|
| Number_Of_Poles |
3
|
| Phase |
1
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
UL 498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
1-Phase Unfused Mechanical
|
| Voltage Rating |
600
|
| Wattage |
18
|
