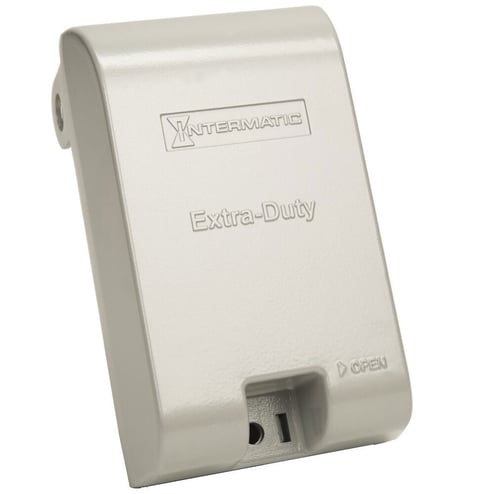

Intermatic Intermatic WP1010MXD


Description

Industry Description

The 2CORD SNG-GNG 6x1.1 ED Aluminum Cover The extra-duty die-cast aluminum Series While-In-Use Covers are easy to install and shipped with a gasket, mounting screws, base and cover assembly, and inserts for a variety of applications

Modified Industry Description

1 GANG EXTRA DUTY WEATHERPROOF COVER, 3 1/8 DEEP, VERTICAL MOUNT, ALUMINUM

AD Description

Intermatic® WP1010MXD WP1000MX Heavy Duty Weatherproof While-In-Use Cover, 6.37 in L x 3.87 in W x 3-1/8 in D, Receptacle Cover, Die Cast Aluminum

Vendor Description

The extra duty die cast aluminum Series while in use covers are easy to install and shipped with a gasket, mounting screws, base and cover assembly and inserts for a variety of applications.

Specifications

Application
Box Cover
Brand Name
Intermatic
Cable_Entry
Neoprene Gasket
Color
Gray
Construction
Gray Die Cast Metal
Cord_Outlet_Size
1.1 WIDTH X 0.6 HEIGHT (2 Cord) IN, 27.94 WIDTH X 15.24 HEIGHT (2 Cord) MM
Country of Origin
CN
Cutout
Veriety
Insert_Type
WP17
Insulation
Neoprene Gasket
Knockouts
in Insert
Material
Die Cast Aluminum
Mounting
Box
Mounting_Type
Surface
Number_Of_Gangs
1
Number_Of_Outlets
1
Shape
Rectangular
Size
1-Gang
Special Features

  • 1/8 in THK neoprene gasket with slits for mounting screws
  • 12 lb impact test to ensure cover remains in tact
  • Heavy duty die cast aluminum construction ensures long lasting durability
  • Lockable hasp all models accept up to 1/4 in Dia shank
  • Meets requirements for cold impact testing (-60 deg F)
  • Reinforced hinge pin designed to exceed 40 lb hinge hang/stress test
  • Three inserts provided with all models that allow each model to meet multiple installations (up to 16 configurations)
Standard
2011 NEC Article 406.9,=.B.1, UL/CSA Impact and Hinge Testing
Sub_Brand
Intermatic
Type
Heavy Duty Weatherproof
Width_2
3.9000
