Burndy Burndy YA2C2TC38E2

Industry Description

Cu Comp Terminal Code Cond, Bvl Entry, 2 Hole/W/O/InspWindow, #2 AWG Code, 60 Navy, 600 V-35 kV, 3/8" Stud, 0.75" Spacing, Lng bbl, Brown, 10 Index.

Modified Industry Description

CU COMPR LUG 2 HOLE 2 AWG 3/8 STUD LONG

AD Description

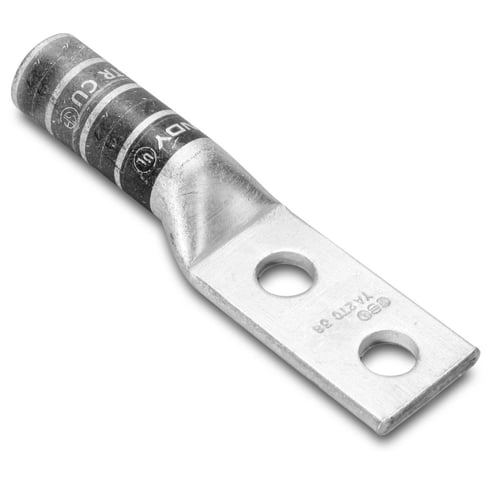

BURNDY® HYLUG YA2C2TC38E2 YA-2TC 2-Hole Compression Lug, 2 AWG Solid/Stranded Copper Conductor, Die Code: 10, 3/8 in Stud, Copper

Vendor Description

BURNDY® compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
