Hubbell Hubbell HBL5260WSA
Hubbell HBL5260WSA
Kirby Risk #: 2487102
UPC: 78358521990, 783585219905, 00783585219905, 30783585219906
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

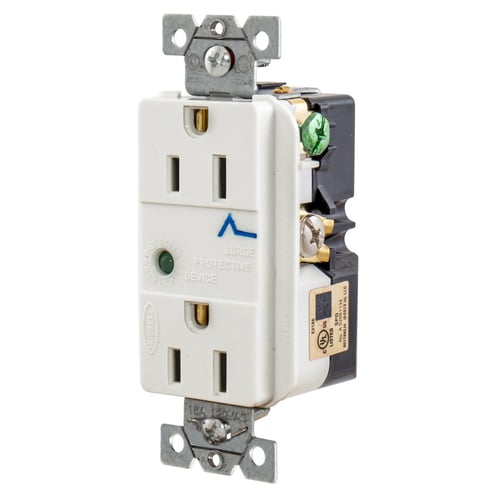

Hubbell Wiring Device Kellems, Surge Protective Devices, SPIKESHIELDTVSS Duplex Receptacle with Light, 15A 125V, 5-15R, White
Modified Industry Description
15A 125V RECPT WHITE SURGE
AD Description
Wiring Device-Kellems SpikeShield® Circuit Guard® HBL5260WSA Decorator Duplex Specification Grade Standard Surge Protection Receptacle With Light, Alarm, 125 VAC, 15 A, 60 Hz, 1 Phase
Vendor Description
Hubbell® offers a broad range SPD receptacles with technology that is unsurpassed. Inside Hubbell® SPD receptacles are two 22 mm square MOVs providing 240 J of surge protection for each mode. The nylon component shield protects the printed circuit board from contaminants. An all glass, conformably coated PC board provides superior moisture immunity for longer life in humid environments.
Specifications
| Amperage Rating |
15
|
|---|---|
| Application |
Surge Supression
|
| Connection |
Terminals
|
| Country of Origin |
CN
|
| Environmental_Conditions |
Indoors Only Unless Protected by Additional Means
|
| Frequency_Rating |
60
|
| Length1 |
4.3000
|
| Material |
Composite
|
| Mounting |
Screws Mounting
|
| Operating_Temperature |
-40 Degrees C to 75 Degrees C
|
| Phase |
1
|
| Series |
Specification Grade
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
UL/CSA
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Duplex Receptacle
|
| Voltage Rating |
125
|
