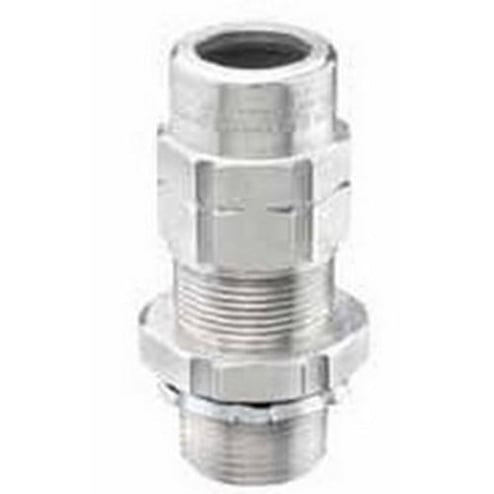

Appleton Appleton TMC2300325A


Description

Industry Description

TMC2 Series Cable Gland Connector, Size: 3 IN, Material: Copperfree Aluminum, Enclosure: IP66, Nema Rating: NEMA 4X, Temperature Rating: -60 To 110 DEG C, Connection: NPT, Dimensions: 4.33 IN Across Flat X 4.68 IN Across Corner X 5.0

Modified Industry Description

3 IN TMC2 CABLE GLAND ALUM

Specifications

Application
For Jacketed Metal Clad, MC/MC-HL, Corrugated Interlocked Aluminum/Steel Armor, Continuously Welded Armor Cable
Brand Name
Appleton
Connection
NPT
Country of Origin
IN
Enclosure
IP66
Material
Copper Free Aluminum
NEMA_Rating
NEMA 4X
Special Features

  • Additional integral deluge proof seal for protection in extreme offshore and onshore environments
  • Aluminum connectors 1/2 in, 3/4 in and 1 in supplied with zinc plated steel locknut
  • Compact slim profile
  • Independent sealing and armor clamping
  • Integral 'O' ring face seal providing - 4X and IP66
  • Re-usable design
  • Reduced installation time
  • Removable cable armor end stop accommodates larger insulated conductors
  • Simplified two piece design
  • Superior pull-out prevention
  • Widest cable acceptance range
Standard
Class I, Division 2, Groups A, B, C, D; Class I, Zones 1 And 2, AExe II AEx tA IIC; Class I, Zones 1 And 2, Exe II Ex tA IIC; Class II, Divisions 1 And 2, Groups E, F, G; Class III, Divisions 1 And 2; UL 514B, 2225, CSA C22.2 No. 174, 249506
Sub_Brand
Appleton
Trade_Size
3
Type
TMC2 Series Cable Gland Connector
