Hoffman Hoffman CR290446G400


Description

Industry Description

ProAir Harsh Environment Indoor Model, CR29, 30.00x18.00x11.00, Gray, Steel

Modified Industry Description

AIR COND; CR29-0446-G400

AD Description

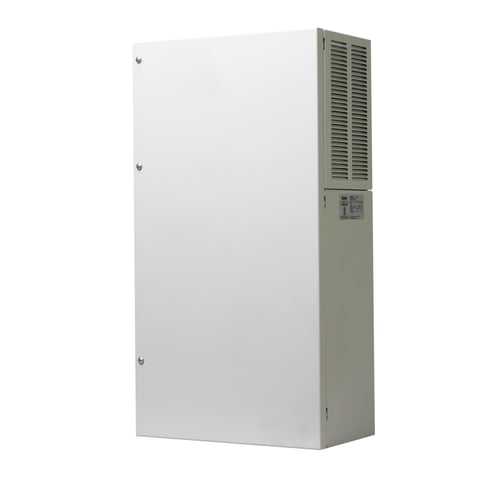

Hoffman ProAir™ CR290446G400 MCL Indoor Sealed Enclosure Air Conditioner, 400 to 460 VAC, 2.5 A, 50/60 Hz, NEMA 12/3R/4 Enclosure, 4000 Btu/hr

Vendor Description

The ProAir Series combines state-of-the-art design with pleasing aesthetics. The Harsh Environment Package protects components exposed to the corrosive environment on the ambient side of the air conditioner.

Specifications

Amperage Rating
2.5
Application
Controls and Drives; Corrosive Environments; Power Distribution
Color
Gray
Country of Origin
US
Dimensions
30 x 18 x 11
Finish
Powder Coated
Frequency_Rating
50/60
Length1
17.7500
Material
Steel
Mounting_Type
Side
NEMA_Rating
12 Indoor, dust-resistant
Operating_Temperature
-40-131
Power_Rating
1172
Series
MCL
Special Features

  • Attractive industrial design with minimal use of visible fasteners
  • Cleanable reusable aluminum mesh filter protects coils for maximum cooling performance
  • Easy maintenance hinged front cover allows quick access to all components, condenser coil can be cleaned while unit is still mounted to the cabinet
  • Easy mount flanges for simple installation
  • Every unit functionally tested before shipping
  • High performance fans and blowers designed for densely packed enclosures
  • Low carbon mild steel sheet metal cover for rugged factory and outdoor environments
  • Reliable mechanical thermostat located behind the filter of the unit
  • Robust reciprocating compressor
  • UL listed or recognized to save customers time and money with agency approvals
Sub_Brand
ProAir
Temperature_Rating
-40 to 131
Type
Indoor
Voltage Rating
400 to 460
