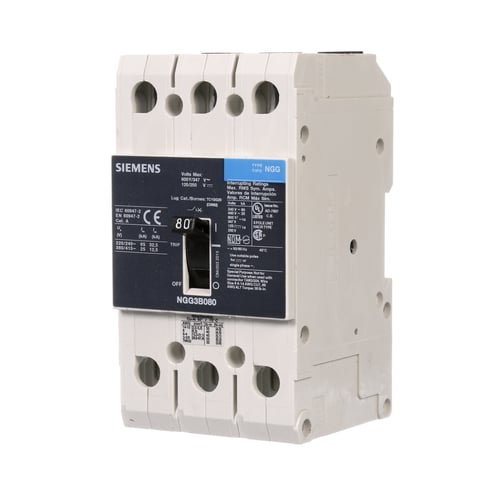

Siemens Siemens NGG3B080L
Siemens NGG3B080L
Kirby Risk #: 2475389
UPC: 78364341388, 783643413887, 00783643413887, 70783643413886
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description
SIEMENS LOW VOLTAGE G FRAME CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP. UL LISTED NGG FRAME WITH STANDARD BREAKING CAPACITY. 80A 3-POLE (14KAIC AT 600Y/347V)(25KAIC AT 480V). SPECIAL FEATURES MOUNTS ON DIN RAIL / SCREW, LINE AND LOAD SIDE LUGS (TC1GG20) WIRE RANGE 8 - 1/0 AWS (CU/AL). DIMENSIONS (W x H x D) IN 3 x 5.4 x 2.8.
Modified Industry Description
BREAKER NGG 3P 80A 480V 25KA LUGS
AD Description
Siemens NGG3B080L Low Voltage Molded Case Circuit Breaker With Lugs, 600Y/347/480 VAC, 80 A, 14 to 25 kA Interrupt, 3 Poles, Thermal Magnetic/LI Trip
Vendor Description
Siemens Panelboard mounting circuit breakers are designed for quick installation in Siemens panelboards and switchboards. The interlocking features allow for one screw installation which mounts the breaker line end bus tab to the panelboard bus bar. Ideally suited for use in lighting panels, these breakers offer HACR ratings as well as Switching Duty ratings for 15 to 20 A and HID ratings from 15 to 50 A.
Specifications
| Amperage Rating |
80
|
|---|---|
| Application |
Industrial
|
| Class |
NDB
|
| Country of Origin |
MX
|
| Dimensions |
5.4 in H x 3 in W x 2.8 in D
|
| Frame |
NGG
|
| Frequency_Rating |
50/60
|
| Interrupt_Rating |
14 to 25
|
| Length1 |
5.3000
|
| Mounting_Type |
DINRAIL/SCREW
|
| Number_Of_Poles |
3
|
| Phase |
3-Phase
|
| Special Features |
|
| Standard |
UL/CSA/IEC/NOM
|
| Sub_Brand |
Siemens
|
| Temperature_Rating |
40
|
| Type |
Low Voltage
|
| Voltage Rating |
600Y/347/480 VAC
|
