Bussmann Bussmann BSPM2240S3G
Bussmann BSPM2240S3G
Kirby Risk #: 2474552
UPC: 05171237296, 051712372961, 00051712372961
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Bussmann
Description
Modified Industry Description
240V CORNER GRND DELTA, 2-POLE SPD
AD Description

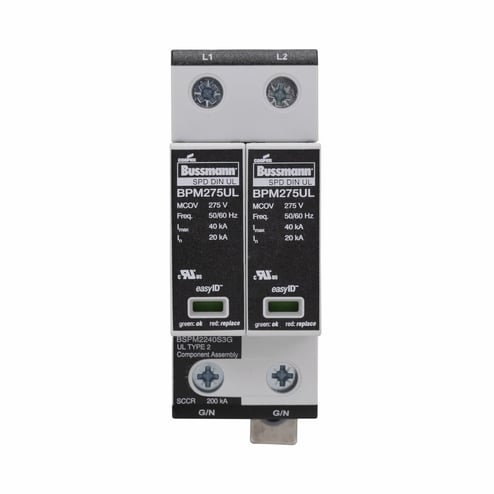

Bussmann Made Simple™ BSPM2240S3G Type MOV Modular Surge Protective Device, 120 to 127/240 to 254 VAC, 50/60 Hz, 2 Poles, 200 kA SCCR, 1 Phase
Specifications
| Application |
UL Type 2 Component Assembly, Single Phase 2/3 Wire With Ground System
|
|---|---|
| Brand Name |
Bussmann
|
| Country of Origin |
DE
|
| Frequency_Rating |
50/60
|
| Material |
Thermoplastic
|
| Mounting |
35 mm DIN Rail
|
| Phase |
1
|
| Response_Time |
25 Ns
|
| Short_Circuit_Rating |
200 kA
|
| Size |
36 mm Width X 65 mm Depth X 90 mm Height
|
| Special Features |
|
| Standard |
UL 1499, UL (CANADA AND US)
|
| Sub_Brand |
Made Simple
|
| Type |
Modular, Without Remote Signaling Contact
|
| Voltage Rating |
127/240/254
|
