Southwire Tool Southwire Tool 148800033

Name: Southwire Tool 148800033
Brand: Southwire Tool
SKU: 2473616
Price: 391.06 USD
Availability: InStock

Southwire Tool 148800033

Kirby Risk #: 2473616

UPC: 02409890025, 00024098900257

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Southwire Tool

Description

Industry Description

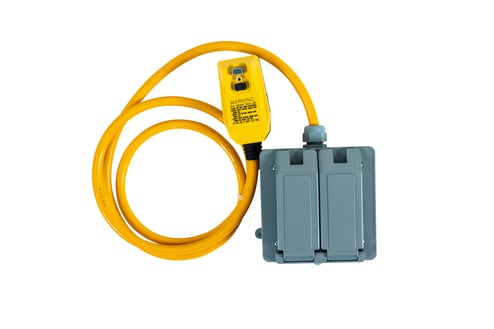

6 FT 120V/15A YEL 12/3 CABLE GFCI QUAD BOX

Modified Industry Description

12/3 SJTW Right Angle GFCI

Amperage Rating	15
Application	Construction
Color	Yellow
Connection	NEMA
Country of Origin	USA
Dimensions	5.1 in H x 2.78 in W
Frame	right angle
Frequency_Rating	50/60 Hz
Interrupt_Rating	15
Length1	45.4120
NEMA_Rating	NEMA 5-15P/5-15R
Number_Of_Poles	1
Phase	1
Special Features	-35 to 66 deg C operating temperature range 12/3 AWG cord gauge 1500 Vrms to 1 min insulation voltage 3 kV ringwave test and 4kv/2kA surge immunity test voltage surge withstand 3000 operations minimum endurance 4 Ohm typical grounded neutral 4 to 6 ma trip level 5% maximum trip level variation effect of 10 A turn DC shock on ground fault trip 50/60 Hz frequency Less than 25 ms trip response time for ground fault and grounded neutral trip Manual reset Mechanical indicator power on indication Operates within normal limits with 0.5 volts injected on power line 150 kHz to 230 MHz radio frequency noise susceptibility Six times rated current overload current SJTW-A 6 ft L cord
Standard	UL943
Sub_Brand	Surge Guard
Type	Right Angle
Voltage Rating	125/250
