Thomas & Betts Thomas & Betts 58825NT0828


Description

Industry Description

Copper Two-Hole Lug, Standard Barrel - Narrow Tongue, Peep Hole, Tongue Length 2.88 Inches, Max 35kV, Wire Size 900 kcmil, 1/2 Inch Bolt Size, 1-3/4 Inch Hole Spacing, Tin Plated, Die Code 115, Die Color Code Yellow

Modified Industry Description

COPPER LUG NARROW TANG

AD Description

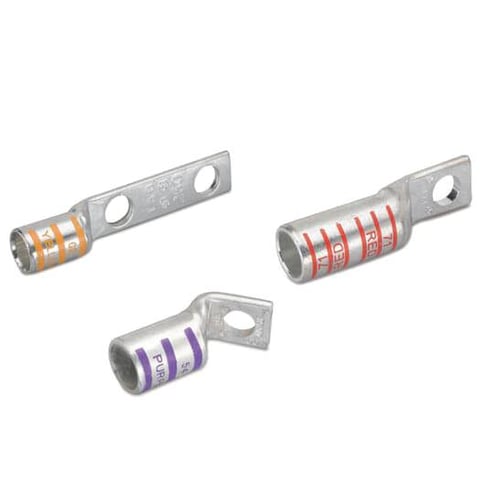

Color-Keyed® 58825NT0828 58800 2-Hole Compression Lug, 900 kcmil Copper Conductor, Die Code: 115, 1/2 in Stud, Copper

Vendor Description

The Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by T&B®. When using the Color-Keyed® compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection. To meet increasing demand for smaller components in todays panels and switchgear, T&B® introduces a new line of Color-Keyed® Narrow-Tongue Lugs. These improved lugs have been precision engineered for consistency in width the entire length of the connector, from barrel to tongue, ensuring a reliable fit in confined space applications.

Specifications

Color
Yellow
Conductor Type
Copper
Conductor Size
900
Country of Origin
MX
Insulation
None
Length1
6.0000
Material
Copper
Series
58800
Special Features

  • Color-Keyed® marking system makes connections and verification easy
  • Double chamfered barrel eases insertion of wire
  • High conductivity copper alloy construction, 99% pure high conductivity seamless wrought copper
  • Narrow width tongue and barrel, engineered for dimensional consistency the entire length of the lug
  • Peep hole
  • Tin plated finish
Standard
UL E9809
Sub_Brand
Color-Keyed
Type
2-Hole
Voltage Rating
600 VAC to 35 kV
