Panduit Pan-Net Panduit Pan-Net NK5E88MIWY


Description

Industry Description

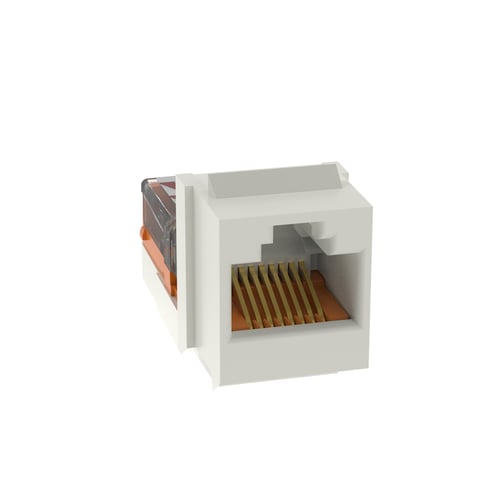

Category 5e, 8-position, 8-wire, keystone leadframe jack module. Off White.

Modified Industry Description

CATEGORY 5E NETKEY 8 POS OFF WHITE MODULE JACK

AD Description

Panduit® NetKey® NK5E88MIWY 8-Wire Unshielded Jack Module, UTP Outlet, Keystone Mount, 8 Jack Position

Vendor Description

Category 5e/class D, 8-position keystone UTP jack module shall terminate unshielded twisted 4-pair, 22 to 24 AWG, 100 Ohm cable without the use of a punch down tool. Optional tool ensures conductors are fully terminated. Universal label is color-coded T568A and T568B wiring schemes.

Specifications

Application
Unshielded
Brand Name
Panduit Pan-Net
Cable_Entry
T568A/T568B
Color
Off White
Country of Origin
CHN
Material
ABS/Plastic
Model
Keystone
Number_Of_Ports
1
Slot_Capacity
1
Special Features

  • -14 to 14 deg F operating, -40 to 158 deg F storage temperature
  • 100% performance tested, confidence that each jack module delivers specified performance
  • 24 to 22 AWG wire
  • ABS housing, polycarbonate wire cap material
  • All in multiple termination styles
  • For high volume installations
  • Individually serialized marked with quality control number for future traceability
  • Lead frame termination
  • Mini-Com® TX5e jack modules are available in standard, keyed, corrosive resistant, shuttered and coupler versions for unshielded installations
  • Termination cap provides strain relief, helps control cable bend radius and securely retains wires in place
  • Universal keystone jack modules snap-in and out of all NetKey® faceplates, modular patch panels and surface mount boxes for fast moves, adds and changes
Standard
Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS
Sub_Brand
Panduit
Type
8-Wire Unshielded
Width_2
7.2500
Width_3
7.4000
