Hubbell Hubbell HBLB7NFD13A
Hubbell HBLB7NFD13A
Kirby Risk #: 2464809
UPC: 78358524259, 783585242590, 00783585242590
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Disconnect Switches, Non Fused, HazardousLocation, 30A 600V AC, 3-Pole
Modified Industry Description
HBL NONFUSED DISC 30A 3P 600V
AD Description

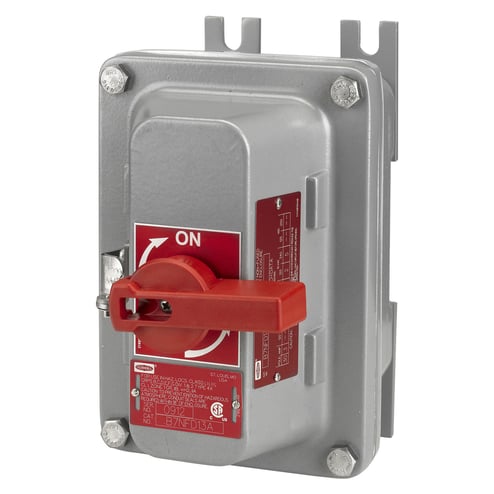

Hubbell® HBLB7NFD13A Non-Fusible Hazardous Location Disconnect Switch, 600 VAC, 30 A, 30 hp, 3 Poles
Vendor Description
Hubbell's hazardous location unfused disconnect and mechanical interlock switches are ideal for applications with the presence of flammable gases or vapors, or ignitable dusts and fibers. They are also suitable for use in outdoor or indoor damp, wet and dirty locations or in areas where frequent wash downs, heavy rain or water spray routinely occurs. Compact in size to reduce cost over industry standard sizes, these switches are easy to position on the wall or piece of equipment. The enclosures are made of copper free aluminum and have a polyester/epoxy finish to prevent corrosion. The high visibility handles can be locked to meet OSHA lockout/tag out regulations.
Specifications
| Action |
Snap
|
|---|---|
| Actuator |
Lever
|
| Amperage Rating |
30
|
| Application |
Extra Heavy Duty Industrial
|
| Color |
Gray
|
| Connection |
Terminal Screws
|
| Country of Origin |
FI
|
| Dimensions |
8.13 in L x 5.75 in W x 6.31 in H
|
| Enclosure |
Metallic
|
| Environmental_Conditions |
Indoors or Outdoors or Hazardous Atmosphere
|
| Finish |
Epoxy/Polyester
|
| Frequency_Rating |
60
|
| Horsepower |
30
|
| Length1 |
10.1000
|
| Material |
Aluminum
|
| Mounting |
Mounting Feet
|
| Mounting_Type |
Feet
|
| Number_Of_Poles |
3
|
| Operating_Temperature |
Max Continuous- 67 Degrees C, Minimum- -40 Without Impact
|
| Phase |
3
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
UL 746C
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 67
|
| Type |
Non-Fusible
|
| Voltage Rating |
600
|
| Wattage |
18
|
