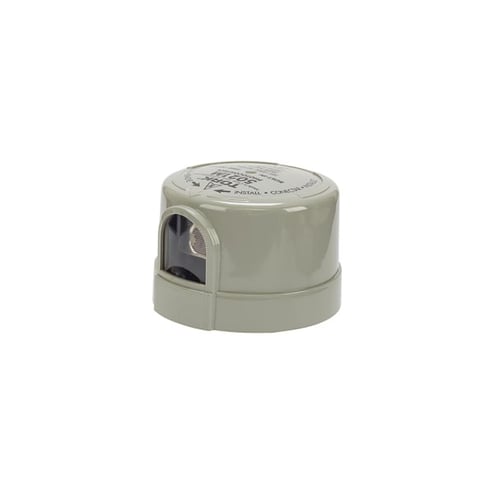

Tork Tork 5021M

Tork 5021M

Kirby Risk #: 2463066

UPC: 78626161015, 786261610157, 00786261610157

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Tork

Description

Industry Description

UtilityGrade TurnLock, On 1-3fc, Off/On Ratio 5Max, Delay Resp, .5" Sensor, 120V, 2000W Tungsten, 1800VA Ballast

Modified Industry Description

UTILITY GRADE TURN LOCK PHOTO EYE 120V 2000W

AD Description

NSI Tork® 5021M Delayed Response Utility Grade Photocontrol, 105 to 130 VAC, 2000 W Tungsten, 1800 VA Ballast, Twist-Lock Mount, Lexan

Application	Street-Highway Lighting
Brand Name	Tork
Color	Gray
Country of Origin	CHN
Enclosure	Lexan Housing
Environmental_Conditions	-40 to 140 deg F Operating Temperature
Frequency_Rating	50/60
Material	Lexan
Mounting	Twist Lock
Mounting_Type	Twist Lock
Operating_Cycles	6000
Operating_Temperature	-40 to + 140 F
Sensitivity	1 to 3 FC (ON)/5 FC Max (OFF) to (ON) Ratio
Sensor	Cadmium Sulphide Cell
Size	H=2.187 - W=3.187
Special Features	1/2 in sensing range Bi-metal provides positive snap action switching, reducing bounce and prolonging contact life Conformal coated CdS photocell resists effects of moisture and airborne contaminants Delayed response prevents false switching due to light from vehicles or lighting operation On and Off time delay Photocell responds to the light spectrum near to that of a human eye Polycarbonate housing and window, UV stabilized for permanent color. provides high impact performance, flammability resistance, and electrically safe operations Solid brass prongs for maximum corrosion resistance and electrical conductivity
Standard	cULus
Sub_Brand	NSi
Supply_Voltage	105-130
Timing_Range	2
Type	Delayed Response Utility Grade
Voltage Rating	105 to 130
