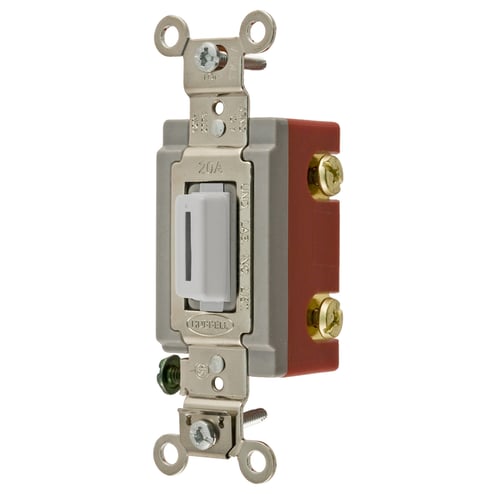

Hubbell Hubbell HBL1222LW


Description

Industry Description

Hubbell Wiring Device Kellems, Switches and Lighting Controls,Industrial Grade, Locking Toggle Switches, General Purpose AC, DoublePole, 20A 120/277V AC, Back and Side Wired, White

Modified Industry Description

DP TOG, IND GRD, 20A 120/277V, LK,

AD Description

Wiring Device-Kellems HBL1222LW Extra Heavy Duty Industrial Grade Locking Standard AC Keylock Switch With Double Ended Key, 120/277 VAC, 20 A, 2 hp, 5540 W Power Rating, 2-Position Contact

Specifications

Action
Snap
Actuator
Double Ended Key
Amperage Rating
120/277VAC
Application
Double Pole
Color
White
Connection
Terminal Screws
Country of Origin
CN
Enclosure
None
Length1
4.1600
Material
Composite
Mounting
Mounting Screws
Series
Extra Heavy Duty
Size
Standard Product Size
Special Features

  • 1 hp at 120 VAC, 2 hp at 208/240/277 VAC
  • Back wire entrance points for terminations accept two wires for feed-through capability avoiding pigtailing
  • Elastomer rocker assures quiet operation and precise timing
  • Indicator dot indicates on
  • Inductive or resistive load
  • Large brass binding head screws with deep slots
  • Large silver alloy contacts reduce contact erosion and prevent welding, providing long life
  • Lock circuits on or off
  • Non-cylindrical lock
  • One piece bridge with integral grounding terminal with #8 brass screw allows compliance to NEC
  • One piece design engineered thermoset base for superior heat dissipation
  • One piece design high impact resistant thermoplastic front for heavy duty industrial environments
  • One piece rivetless copper alloy spring contact arm and terminal plate assures proper contact alignment reducing heat rise
  • Permanently lubricated assembly provides long life and trouble free operation
  • Prominent amperage marking on mounting strap allows easy identification of rating
  • Snap action
  • Stainless steel automatic grounding clip assures grounding continuity between mounting strap and metal wall box
  • Steel nickel plated mounting strap provides a superior corrosion resistant finish
  • Strip gauge for accurate wiring
  • Thread cleaning captive mounting screw
Standard
UL20
Sub_Brand
Hubbell Wiring Device-Kellems
Temperature_Rating
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Type
General Purpose Switches
Voltage Rating
20A
Wattage
5,540
