Hubbell Hubbell SNAP5362RA
Hubbell SNAP5362RA
Kirby Risk #: 2460098
UPC: 78358524771, 783585247717, 00783585247717, 30783585247718
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

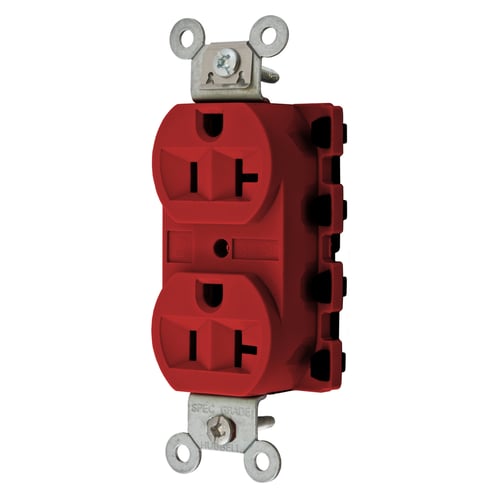

Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Duplex, SNAPConnect 2, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Red
Modified Industry Description
20 A 125 V 2 POLE 3 WIRE RED SNAPCONNECT SPEC DUPLEX RECEPTACLE
AD Description
Wiring Device-Kellems SNAPConnect® SNAP5362RA 1-Phase Duplex Extra Heavy Duty Grounding Standard Traditional Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Red
Vendor Description
SNAPConnect® devices offer superior installation efficiency for new construction and renovations, while delivering safe, reliable connections. Instead of conventional wiring methods, SNAPConnect® modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed and the terminal is simply snapped into the SNAPConnect® device for a consistent connection every time. Once installed, SNAPConnect® modular design enables simple device change out by maintenance personnel.
Specifications
| Amperage Rating |
20
|
|---|---|
| Application |
Extra Heavy Duty
|
| Brand Name |
Hubbell
|
| Color |
Red
|
| Connection |
Connectorized
|
| Conductor Size |
#12 AWG
|
| Country of Origin |
CN
|
| Dielectric_Strength |
Withstands 2,000V minimum
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Material |
Thermoplastic/Composite
|
| Mounting |
Screw Mount
|
| NEMA_Rating |
5-20R
|
| Number_Of_Poles |
2
|
| Number_Of_Wires |
3
|
| Phase |
1
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL 498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Traditional Duplex
|
| Voltage Rating |
125
|
| Wattage |
2,500
|
